High Efficiency Filter Material Filtration Performance Tester - China

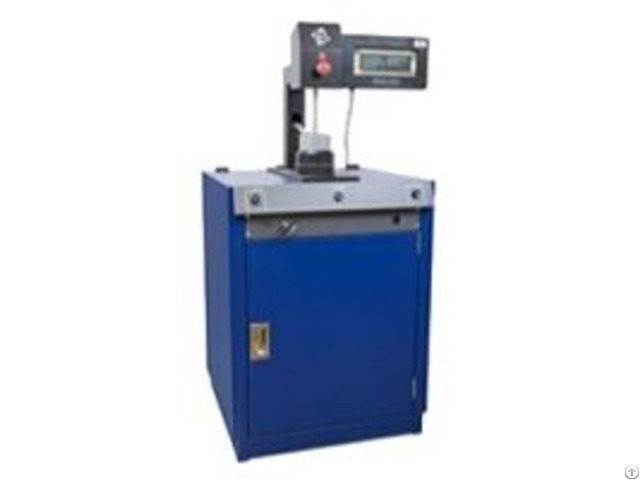

The Automated Filter Tester Model 8130 is designed to comply with commercial respirator mask standards around the globe and has a proven track record of durability, reliability, and minimal maintenance, meeting the demanding requirements of manufacturing and quality control environments.

Whether you are looking for a stand-alone tester to check a few filters per day or need to integrate your tester in an automated, high volume production line, AFT's are up to the challenge.

Specially designed aerosol generators and detectors enable highly repeatable and reproducible filter-efficiency measurements.

In addition, the Model 8130 features a high degree of automation and self-diagnostics that greatly simplifies operation, increases throughput and improves overall measurement performance.

As a result, The filter testers are ideally suited for QC testing.

The Model 8130 measures penetration efficiencies of filter media or masks.

Values up to 99.999 percent (penetrations as low as 0.001 percent) have been realized with Emery oil at concentrations of 200mg/m³.

Please note that the sensitivity for salt aerosol is less.

A variety of aerosols may be used because oil aerosols are generated without heat.

QinSun offers a variety of optional accessories to diversify the capability and applicability of the Automated Filter Tester Model 8130 - These include custom filter holders and external adapters for testing a wide variety of filter types and an external control interface for automated tester operation.

Feature Benefits

Compliance with respirator regulations

Simple, fast and automated operation

Highly consistent test results

Designed for manufacturing environments

Service and support

Thermal printer

Test media sheets

Gravimetric filter holder

Flat-media filter holder

Custom filter holders available Applications

USA commercial respirator regulation (42 CFR part 84)

European EN 143 and related respirator standards View EN 143 Compliance Report (US)

View EN 143 Compliance Report (DE)

JMOL (Japanese respirator standard)

And, many more national respirator regulations

Filter media testing

Consult your Qinsun representative for more details Technical Parameters

Items Parameter

Apllication Load and quality control

Max Efficiency 99.999%

Aerosol Type DOP/PAO/DEHS/Paraffi/Othe rs Oil Aerosol, Salt

Aerosol Generation Atomizing

CMD 0.2μm(Oil)or 0.75um(NaCl)

GSD ＜1.6(Oil)or <1.86(NaCl)

Flow Rate 15-100L/min

Resistance 0-150mm H2O(0-1470Pa)

Particle Detect Scatter Photometer

Measurement Time 10 Sec.

Data Report LCD, RS-232

Operation Independent tewster, automatic production line

Standard compliant US 42 CFR part 84, EN 143, JMOL, ISO 23328-1 ISO 16900-3

Power Supply 115VAC, 60Hz, 10A或230VAC, 50Hz, 5A

Compressor Air 80psig, 7scfm(550kPa, 198std.

L/min)

Dimension 70cm x 70cm x 147cm(28in, x 28in.

x 58in.

)
