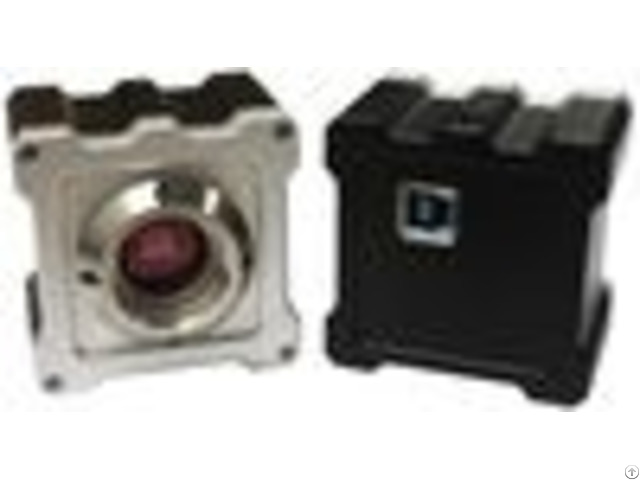

High Speed Usb3 0 H1tc030m Coms Camera For Industrial Machine Vison And Inspection - China
price: 420.00 Dollar US$
JPLY High Speed USB 3.0 Camera : H1TC030M Sensor ICX618ALA
Maximum Resolution 659*494
Pixel Size 5.6um*5.6um
Frame Rate 120FPS
Working Mode Continuous
Frame With Error No more than 10FPS
Requirements on external trigger No
ADC 8bit Exposure Auto exposure, manual exposure Exposure time 1/30s, 1/60s, 1/120s, 1/250s, 1/500s, 1/1000s, 1/10000s
Gain 6-36dB
Output format RAW
Anti-flash 50HZ/60HZ
Interface USB3.0
Input Voltage 5V
Power about 2.5W
Indicator light No Need
Software Spectrumsee image analysis software with modular designing, Including image previewing, capturing, analyzing, processing, sharing
function.
It gives users the latest image processing experiences.
The software function: image capturing, time lapse, measuring, data exporting image mosaic, depth of field overlaying, text instruction inserting, etc.
Company Contact:
- Posted By: JPLY Electronic Technology Co., Ltd.
- Phone: +8602038077661
- Address: 3rd Floor ,Number 59 Tangdong East Road, Guangzhou China, Guangzhou , Guangdong , China
- Email:
Published date: December 4, 2017
- Business Description: As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business.
With quality and integrity at our core, we deliver best-in-class camera and related product.
JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time.
Being a leader of camera designer in China, JPLY is developing to a world class brand.
We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
