High Speed Usb3 0 H1td01c Coms Camera For Industrial Machine Vison And Inspection - China
price: 268.00 Dollar US$

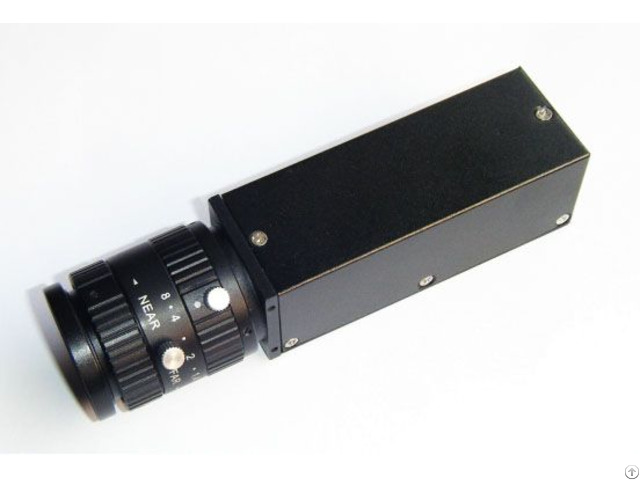

JPLY USB 3.0 Camera 50fps-60fps With 1.3MP H1TD01C Sensor Size 1/1.8" CMOS Color/Mono
Sensor Dimension 5.3μm×5.3μm
Scan Method Progressive Scan Quantum efficiency 48%@650nm, 30%@750, NIR
Frame rate 50fps@1280x1024(8bit)
Shut ERS & Global shutter
Dynamic range 65dB
SNR 41dB
Spectrum response 400-1100nm
Data Interface USB3.0 5Gbps
Control Interface 1xR485, 2xI/O, 1xStrobe, 1xTrigger
USB Cable 3M
Power DC 5V±5%
Current <500mA
White balance Manual white balance, automatic white balance/area white balance
Exposure Time 21us~1.3s
Auto Exposure control Automatic/manual exposure area
Lens Mount CS interface (optional C interface)
Busy Indicator Power light, the trigger light
Working temperature 0℃-60℃
Working humidity 0-85%
Software spectrumsee image analysis software with modular designing, including image previewing, capturing, analysing, processing, sharing fuction.
It gives users the latest image processing experiences.
The software fuction: image capturing, time lapse, measuring, data exporting image mosaic, depth of field overlaying, text instruction inserting, etc
Company Contact:
- Posted By: JPLY Electronic Technology Co., Ltd.
- Phone: +8602038077661
- Address: 3rd Floor ,Number 59 Tangdong East Road, Guangzhou China, Guangzhou , Guangdong , China
- Email:
Published date: December 4, 2017 - Modified date: December 4, 2017
- Business Description: As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business.
With quality and integrity at our core, we deliver best-in-class camera and related product.
JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time.
Being a leader of camera designer in China, JPLY is developing to a world class brand.
We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
