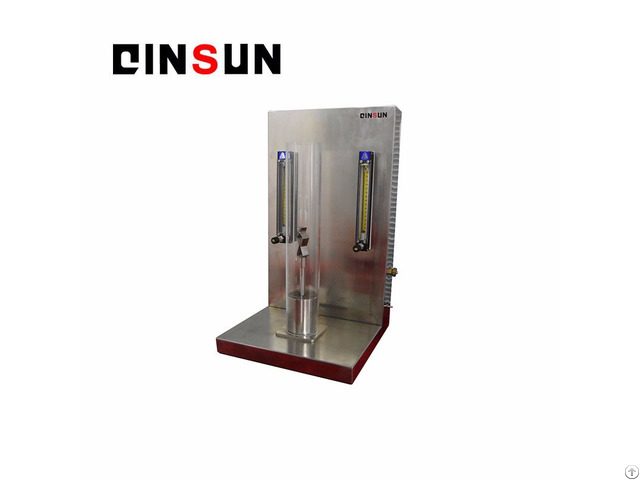

High Temperature Oxygen Index Tester - China

Testing Standards: ISO 4589-2, ASTM D2863, GB/T 2406, GB/T 5454 Product Information:

Oxygen Index Test Apparatus Features:

1 - Used to determine the lowest oxygen density that tested materials keep steady burning under oxygen and nitrogen mixed gas.

2 - Utilizing the latest oxygen analyzer technology, the unit provides a stable, digital readout of oxygen concentration to ± 0.1%.

3 - A heavy duty Pyrex chimney is provided, along with two types of sample holder: A.

For non-self-supporting sheet samples (e.g. textiles, films, papers, etc.

) Sample size: 150 × 37.5 mm and up to 12 mm thick.

B.

Self-supporting rod samples (e.g. plastics, wood, etc.

).

Sample size: 150 mm length and up to 10 mm diameter.

4 - Automatic calibration.

5 - Digital selection of oxygen concentration by push-button control.

6 - Adjustment of oxygen and nitrogen flow is automatic to achieve the desired oxygen concentration.

7 - Digital Display: Instrument status, oxygen concentration, flow rate, chimney temperature, elapsed time.

8 - All necessary control valves, flowmeters and filters are built in and the instrument is easy to use.

9 - The apparatus is supplied complete with a burner assembly and instruction manual.

10 - Weight: 45kg.

11 - Dimensions: 460mm(W)×410mm(L)×780mm (H).
