Holykell Hot Sales Analog 4 20ma 0 5v 0 10v Submersible Liquid Water Level Sensor - China

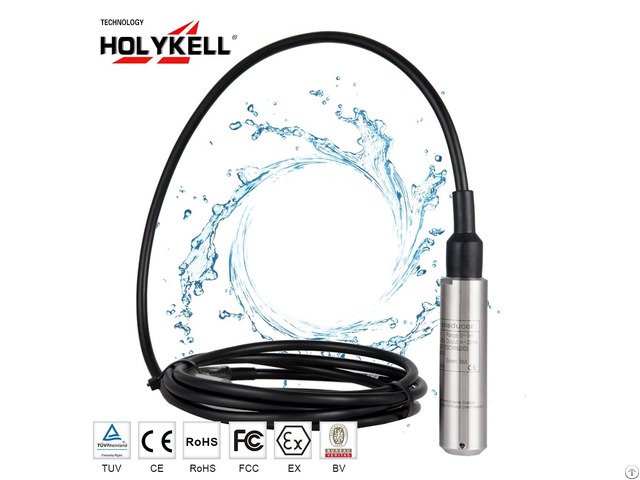

　Profiles 　　HPT604 is a submersible level transducer suitable for liquid level and depth measurement.

It consists of an imported MEAS TE piezoresistive sensing element encased in 316 SS housing.

It’s all stainless steel, hermetically sealed housing make it suitable The given measuring ranges are also available in mbar, kPA and MPa.

for immersion in most industrial liquids and oils.

Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.

　　Units come equipped with a 270-pound tensile strength shielded and vented cable.

Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.

The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.

　　The HPT604 incorporates lightning and surge protection utilizing dual arrestor technology, and to assure under the input and output short-circuit conditions to protect prevent reverse connection.

The grounded to case, eliminating both power supply surges and lightning ground strike transients.

　　Holykell can provide a cost effective solution for level monitoring for a variety of applications.

Welcome to your inquiry.

　　Characters 　　·MEAS TE pressure cell, 0.25% F.S., 　　·316L stainless steel diaphragm, welded 316SS body 　　·construction shock and erosion 　　·Custom level ranges from 50cm to 500m 　　·Unique 8 pressure holes design 　　·IP68 full sealed plastic waterproof design 　　·Optional Lifetime Lightning Protection 　　·Custom PU, PE or PTFE cable lengths 　　Technical parameters 　　Universal Submersible Liquid Level Transducers 　　Pressure range: -1~1bar……1000 bar options 　　Output : 4~20mA, 0~5V/0~10V, Hart protocol 　　Range: 0~0.5 M……500 M H2O optional 　　Output : 4~20mA, 0~5V/0.5~4.5V;RS485, RS232, Hart 　　Power supply: +12VDC~+36VDC 　　Accuracy : 0.15%F.

S, 0.25%F.

S, 0.5%F.

S optional 　　Working temperature: -30℃~+85℃ 　　Cable: PE cable with vents 　　Certificate: CE, RoSH 　　Application: Liquid measuring in tanks, rivers, lake, Sea, Well, Tube, underground water

Company Contact:

• Posted By: Holykell

• Phone: 17307413256

• Address: No.100 LuYun Road ,LuGu ,Changsha 410205,Huna China, Changsha , Hunan , China

• Email:

• Website: https://www.holykell.com

• Business Description: In 2001, Holykell restructured the production department of national large-scale enterprises .

  Rely on the original strong technical force and the introduces the most advanced numerical control machining equipment both domestically and from abroad.

  Became the leading pressure transmitter manufacturer in Hunan Province.

  With purification workshop 5000 squra meter, 3 cycle full auto production line & half auto production line, the annual capacity can reach 1 million; 1000 squar meter modern office.

  Holykell has implemented IOS9001: 2015 quality management system in the procurement of raw materials, production, testing, export and other aspects.

  Management, research and development, production, and quality are all meeting international professional standards.

  "World Factory" is being staged.

  2003, Holykell R&D team was lead by the technical director of General Manager Hu.

  So far, a total of 20 members, 90% have Bachelor's degree, 5 members have doctor's degree and 3 members are overseas returned engineers.

  Currently, A number of new-type pressure sensor and level sensor products have been developed.

  And have obtain 17 national invention patents, and more than 60 practical new model patents.
