Horizontal Flammability Tester For Determining The Burn Resistance Of Textiles - China

The Horizontal Flammability Tester is designed for determining the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use.

Standards:

ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132, JIS D1201, AU 169 Features:

Horizontal Flammability Tester can detect the relative burning rate and flame retardancy of textiles, especially automotive interior fabrics.

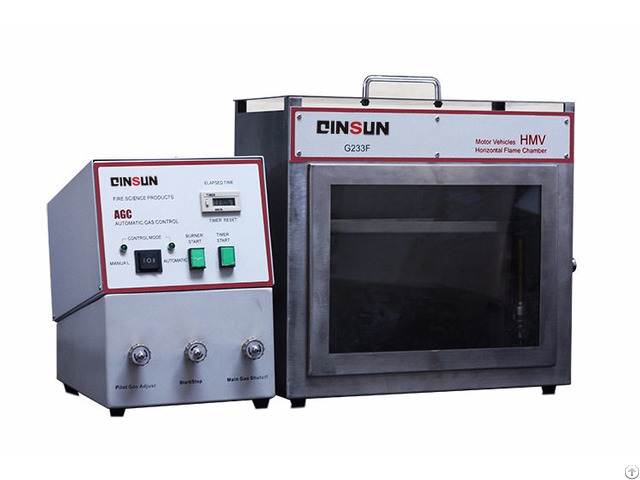

The instrument is equipped with a seal Rust steel combustion chamber, observation window, sample holder and door burner.

Automatic gas control system, including electromagnetic control gas valve, automatic ignition timer and control Technical Description:

A.

Comprises draft free stainless steel cabinet with observation window, stainless steel (#316) with stands high temperature and high pressure.

B.

Impending tympanic membrane structure provided with steel springs and damping system, which makes the operation stable.

C.

Designed with sample holder and door mounted burner.

D.

Basic mode with manual control of timing.

E.

Sample holder can be moving vertically and horizontally.

F.

Optional Automatic Gas Control System including solenoid control gas value and automatic ignition timer and controls.
