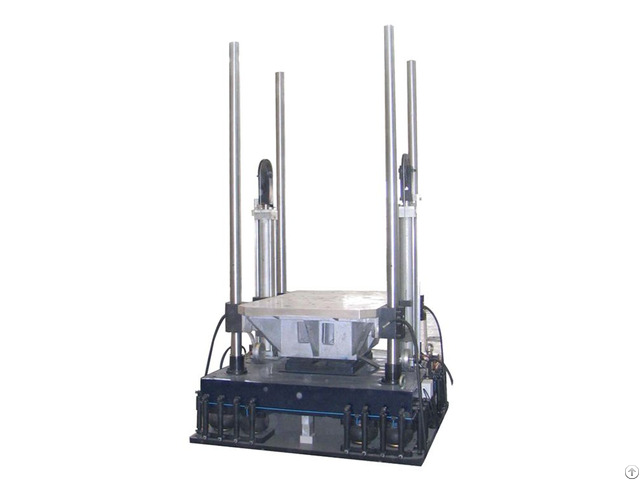

Hydraulic Lifting Vertical Shock Test System - China

This series is a fully automated hydraulic lifting shock test system, which is used to measure and determine the shock resistance performance of product or package, to check the functional reliability and structural integrity of the test product in a shock environment.

The system can perform the shock test of general half sine wave, post peak sawtooth wave, square wave and other waveforms, to achieve the shock wave and shock energy of the product in the actual environment, then to improve the system or optimize the packaging structure of product.

Functions and features:

1 - Windows-based stable control system: fully automatic remote control interface, the operator only needs to input simple values, KCT90 series shock and bump measuring controller can accurately complete the shock test;

2 - Multi-track guide pillar: combine with hydraulic balance lifting system, good lubricity, no noise, fully automatic positioning table;

3 - Automatic control of lifting height: after the height setting is completed, the computer automatically controls the lifting height of the table, with high accuracy and good repeatability;

4 - Forged or cast aluminum table with high performance: forged or cast aluminum table, provides a higher strength and hardness, and a higher first-order resonance frequency, low noise, and no clutter;

5 - The most reliable brake system: built-in brake mechanism, to avoid the second rebound bump, and locate the table more safely;

6 - Multiple waveforms: replace different waveform generators to perform general half sine wave, post peak sawtooth wave, square wave and other waveforms;

7 - Easy installation: the device is equipped with high-performance buffer vibration isolation device, no need for special foundation, easy and reliable to install;

8 - Perfect measurement system: there are various waveform tolerance zones in the system memory, which is convenient for users to adjust and apply, and automatically complete the test report generation after the test is over;

9 - System compatibility: compatible with a variety of shock measurement and analysis software systems, to provide users with more choices.

Model: KCT10-1000;

Rated load (kg): 1000;

Table size (mm): 1200*1000 mm ;

Shock waveform: Half sine Post peak sawtooth Trapezoid

Peak acceleration (m/s2): 150~2000 100~500 150~500

Pulse duration (ms): 30~6 18~6 18~6

Overall dimensions (mm): 1750*1500*2800

Weight (kg): 7100;

Power supply: AC 380V±10%, 50/60Hz
