Iec60335 Test Probe For Measuring Surface Temperature - China

price: 285.00 Dollar US$

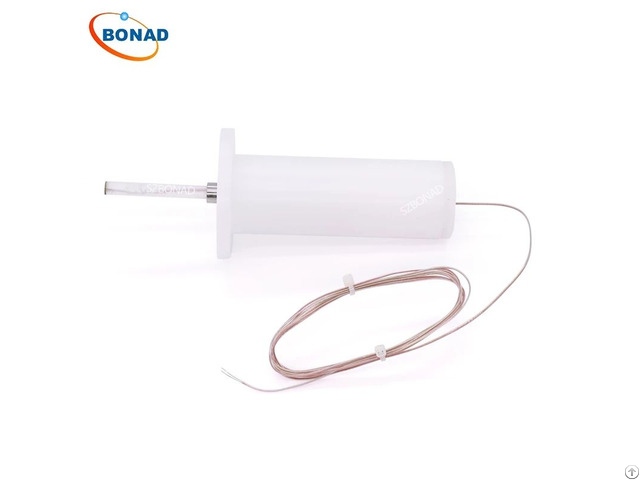

Iec60335 Test Probe For Measuring Surface Temperature

Products Photos Catalog Iec60335 Test Probe Photos Catalog

Introduction: 1 - The probe for measuring the surface temperature meets the requirements of IEC60335, which is suitable for measurement of surface temperature rise of tumble dryers and standing electric stoves, ovens and other similar household electrical appliances.

2 - The temperature rises of surfaces surrounding the heater such as walls, floor, ceiling and shelf are determined.

The measurements are made by using fine-wire thermocouples having a diameter not exceeding 0, 3 mm, attached to the back of small blackened disks of copper or brass, 15 mm indiameter and 1 mm thick.

The front of the disks are flush with the surface of the board.

The thermocouples are positioned to measure the highest temperature rise of each surface.

The highest temperature rises are stated, rounded to the nearest 1 K.

Contact surface：Diameter 5* Thick 0.5mm Tinned copper disc.

Tube: Inside diameter: 3mm, outside diameter 5mm.

Thermocouple: Diameter 0.3K Type.

Handle arrangement permitting contact force: 4n.


Company Contact:


  • Phone: +86 15818644996

  • Address: Baoan 45 district, Shenzhen , China

  • Email: Email


Published date: June 17, 2022

  • Business Description: SHENZHEN BONAD INSTRUMENT Co., Ltd. (HONGKONG BONAD TECHNOLOGY LIMITED) is a high-tech company in HongKong, producing all kinds of precise instrument.

    We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on.

    We have gathered lots of well educated and experienced researchers and administrators on this electric products.

    All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

    Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

    Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world.

    We are always one of the most popular precise instrument manufacturers in the whole world!
