Iec60695 12mm Telecom Test Probe - China

price: 150.00 Dollar US$

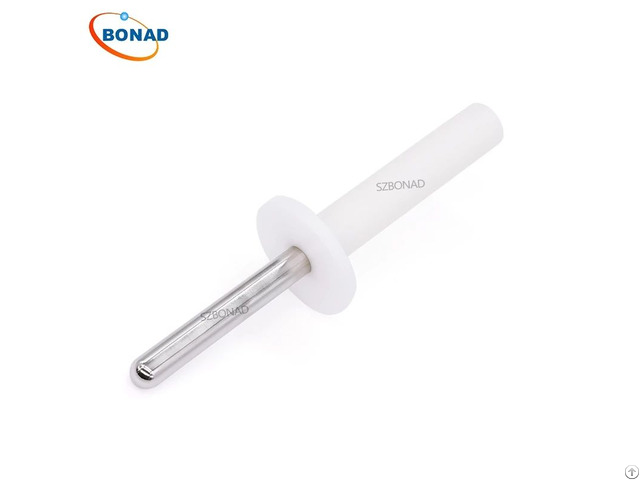

Iec60695 12mm Telecom Test Probe

Products Photos Catalog Iec60695 12mm Telecom Photos Catalog

Introduction :

The 12mm Telecom test Probe is required in IEC 60950, IEC 60065, UL and CSA Standards.

It is used to check for limited access to telecommunications voltages (TNV), mainly telephone jacks and operator areas.

Satisfies basic standard for telecom product safety.

Meets Requirements for Testing Standard(s): IEC60950, IEC60065, IEC60695, UL6500 - Technical Parameters: Telecom Test probe diameter: 12mm Probe Ball Diameter: 6mm Telecom Test probe length: 80mm Baffle Plate Thickness: 5mm Dam-board diameter: 50mm Handle Diameter: 10mm Handle Length: 100mm Material: nylon and stainless steel Reference: IEC60950, IEC60065, IEC60695, UL, CSA.

How to use: The 12mm metal part of the test probe cannot touch the live parts or the dangerous parts, and the 50mm baffle cannot enter.

In the test requirement for preventing access to the hazardous parts, thrust test finger should be applied thrust.

Note: The test probe is a precision stainless steel product, handle it gently during use, and pay attention to maintenance.


Company Contact:


  • Phone: +86 15818644996

  • Address: Baoan 45 district, Shenzhen , China

  • Email: Email


Published date: June 15, 2022

  • Business Description: SHENZHEN BONAD INSTRUMENT Co., Ltd. (HONGKONG BONAD TECHNOLOGY LIMITED) is a high-tech company in HongKong, producing all kinds of precise instrument.

    We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on.

    We have gathered lots of well educated and experienced researchers and administrators on this electric products.

    All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

    Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

    Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world.

    We are always one of the most popular precise instrument manufacturers in the whole world!
