Iec61032 Test Probe 11 With 50n/75n Force - China

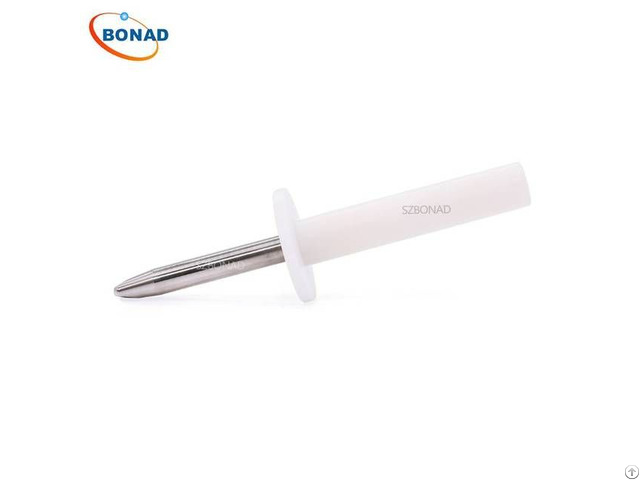

Introduction: This Unjointed Finger Probe is made for forceful insertion where the flexibility of the Jointed Finger Probe would be difficult.

The UFP25 meets IEC 61032 requirements, Figure 7, Test Probe 11 - 1 - Unbendable test probe BND-11 is the necessary implement in protection against electric shock test for household and other have similar matter electrical appliance .

2 - The finger portion of this test probe can not touch the live parts or hazardous parts, and it can't enter 20mm-50mm baffles.

Application: Electronic products and electrical appliances.

Note: Test probe is precision stainless steel products, please use of gently .

In the experimental requirements to prevent proximity to hazardous components, the thrust test refers directly to the need to apply thrust.

Standard : IEC61032 IEC60065 IEC60335-1 IEC60884-1 - Parameters:

Nodular Finger Length: 80mm

Nodular Finger Diameter: 12mm

Dam-board Diameter: 50mm

Dam-board Thickness: 5mm.
