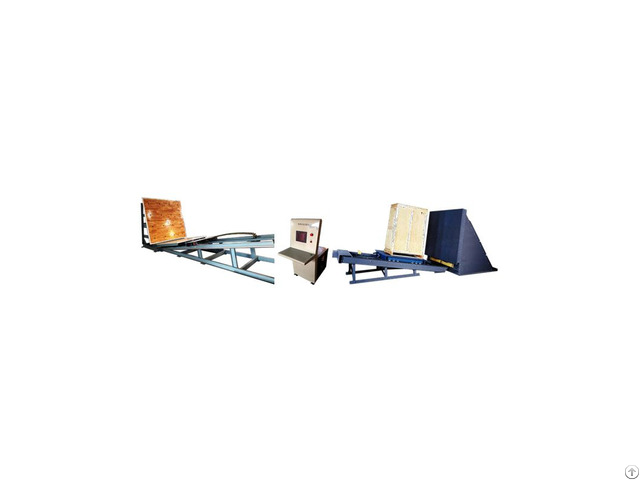

Incline Impact Test System - China

This system is used to simulate the ability of product packaging to resist impact damage in the actual environment, such as carrying, stacking shelves, sliding of motor, loading and unloading from locomotive, transportation of products, etc.

Besides, this tester can also be used as a common test equipment for incline impact test in scientific research institutes, colleges and schools, packaging technology testing centers, packaging materials manufacturing plants, foreign trade department, transportation department and other departments.

Functions and features:

1 - The flexible low-damping pulley, with high precision of sliding repeatability, realizes the required speed variation value;

2 - The guide rail which is high-strength and low-friction is helpful for the pulley to slide accurately;

3 - As for specimen with heavy load, it is easy for user to install the specimen by attaching a mechanism to the composite pulley table, which makes it rotates horizontally;

4 - The tough sliding table made of wood or iron protects the surface of specimen effectively;

5 - The perfect control and measurement system, which integrates control and measurement, is easy and convenient to operate;

6 - The unique method to lift and release offers obvious advancement and reliability;

7 - The customer only needs to fix the machine on the ground when installation, without any complicated operation or installation.

Model: KCT100-2000;

Load (kg): 2000kg;

Working table size (mm): 2000*2000 mm;

Impact panel size (mm): 2400*2400mm;

Max.

sliding distance (mm): 4000 (to be agreed);

Impact velocity range (m/s): 0.59~2.35;

Impact velocity error: ≤±5%;

Overall dimensions (mm): 6000*2400*2800;

Power supply: Three-phase, AC 380V±10%, 50/60Hz;

Environment: Temperature: 0~40℃, humidity: ≤80%, (non condense);
