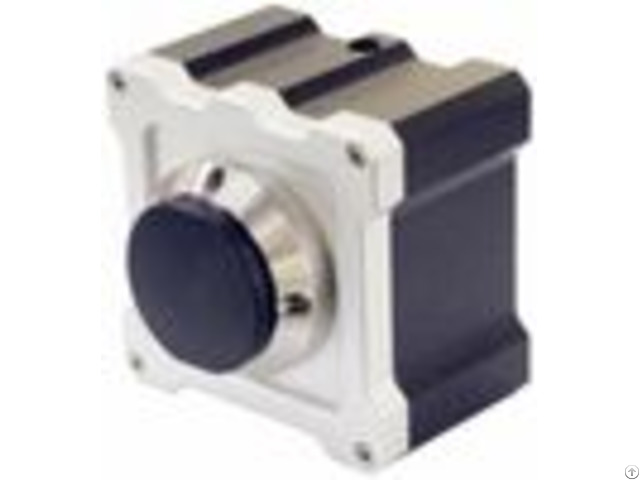

Industrial Camera G1td10c Electronic Shutter For Visual Inspection - China
price: 178.00 Dollar US$
USB3.0 10.0 Mega Color camera G1TD10C Image sensors 1/2.3" CMOS Color
Pixel size 1.67μm*1.67μm
Resolution 3840*2478
Scan method Progressive scan
Sensibility 0.31V/lux-sec 550nm
Frame rate 7fps@3664*2748
Shutter Electronic Shutter
SNR 40.5dB
SpectraI response 400nm~1000nm
Data interface USB3.0 480Mb/s 1.8M Cable
Power DC5V± 5%
Current ≈200 mA
White balance Manual/Auto One-key white balance
Auto exposure control 49μs~3s, Manual/Auto exposure
lens mount C Mount
Busy indicator LED
Working temperature 0℃~600℃
Working humidity 45%-85%
Support systems Windows XP(32bit/64bit)/Win 7(32bit/64bit)/Vista(32bi t/64bit)
Software spectrumsee image analysis software with modular designing, including image previewing, capturing, analysing, processing, sharing fuction.
It gives users the latest image processing experiences.
The software fuction: image capturing, time lapse, measuring, data exporting image mosaic, depth of field overlaying, text instruction inserting, etc
Company Contact:
- Posted By: JPLY Electronic Technology Co., Ltd.
- Phone: +8602038077661
- Address: 3rd Floor ,Number 59 Tangdong East Road, Guangzhou China, Guangzhou , Guangdong , China
- Email:
Published date: December 4, 2017
- Business Description: As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business.
With quality and integrity at our core, we deliver best-in-class camera and related product.
JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time.
Being a leader of camera designer in China, JPLY is developing to a world class brand.
We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
