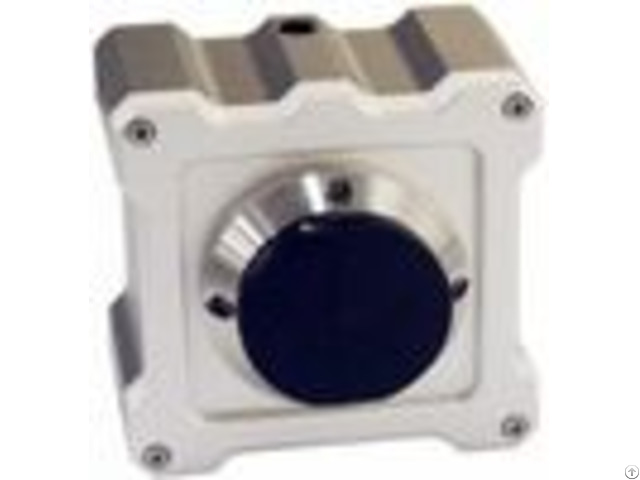

Industrial Visual Inspection G1td03c Electronic Shutter Camera - China

price: 129.00 Dollar US$

G1TD03C 3.0 Mega Color USB3.0 camera Image sensor 1/2.

" CMOS Color

Pixel Dimension 3.2μmx3.2μm

Resolution Ratio 2048x1536

Scan method Progressive scan

Sensibility 1.4V/lux-sec(550nm)

Frame rate 12fps@2048x1536

Shutter Electronic shutter

Dynamic range 61dB

SNR 44dB

Spectral response 400nm~700nm

Data interface USB3.0, 5Gbps, 3M cable

Power DC5V± 5%

Curren ≈500 mA

White balance Manual/Auto One-key white balance

Auto exposure control 52μs~3.3S, Manual/Auto exposure

lens mount C Mount

Busy indicator LED

Working temperature 0℃~60℃

Working humidity 0%-85%

Software spectrumsee image analysis software with modular designing, including image previewing, capturing, analysing, processing, sharing fuction.

It gives users the latest image processing experiences.

The software fuction: image capturing, time lapse, measuring, data exporting image mosaic, depth of field overlaying, text instruction inserting, etc


Company Contact:


  • Phone: +8602038077661

  • Address: 3rd Floor ,Number 59 Tangdong East Road, Guangzhou China, Guangzhou , Guangdong , China

  • Email: Email

Published date: December 4, 2017

  • Business Description: As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business.

    With quality and integrity at our core, we deliver best-in-class camera and related product.

    JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.

    The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time.

    Being a leader of camera designer in China, JPLY is developing to a world class brand.

    We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
