Introduction Of Textile Abrasion Tester - China

Textile Abrasion Tester-YG401E Martindale Abrasion Tester (Fabric Flat Grinding Tester) is suitable for most fabrics (more suitable for woven fabrics) under light pressure and the degree of pilling and fine cotton, hemp, and spun silk The method of measuring the abrasion resistance of woven fabrics meets many relevant standards such as national standards, international standards, American standards, European standards, and has reliable performance.

1 - Modular design, easy loading and unloading of samples

2 - The operation of the system is controlled by the touch screen and the programmable controller PLC imported from France.

The operation interface is simple, visual and easy to operate, and it is operated by a dual-selection menu in Chinese and English.

3 - It adopts a nine-station design and is equipped with two sets of grinding heads, which can perform ball and wear-resistant functions at the same time, and the test efficiency is greatly improved.

There are three test modes for this machine: Mode 1: The circular sample and the fabric of the same material are rubbed with the Lissajous (Chinese transliteration: 李莎茹) graphic motion track under a given pressure.

After reaching the specified number of revolutions, the sample is evaluated for the level of pilling.

This principle corresponds to the test of the degree of pilling of the fabric specified in the standard.

Mode 2: Under a certain pressure, the circular fabric sample and the standard abrasive will rub against each other according to the trajectory of the Lissajous (Chinese transliteration: 李莎茹) curve, resulting in damage to the sample and the wear resistance of the sample.

The number indicates the abrasion resistance of the fabric.

This principle corresponds to the abrasion resistance test of fabrics specified by the standard.

Mode 3: Under a certain pressure, the circular fabric sample rubs against the standard abrasive in a straight line of motion, resulting in damage to the sample.

The wear resistance of the fabric is represented by the number of times the sample is damaged.

This principle corresponds to the abrasion resistance test of fabrics specified by the standard.

GB/T21196-2007 "Determination of abrasion resistance of textiles by Martindale method" (national standard) GB/T4802.2-2008 "Determination of the Pilling Performance of Textile Fabrics Part 2: Modified Martindale Method"

GB/T 19089-2012 "Determination of Abrasion Resistance of Rubber or Plastic Coated Fabrics: Martin Dahl Method" BS ISO12947-2007 "Determination of Textile Abrasion Resistance by Martindale Method" (British Standard)

DIN ISO12947-2007 "The Martindale Method for Textiles to Test Fiber Abrasion Resistance" (German Standard)

EN ISO12947-2007 "Determination of Textile Abrasion Resistance by Martindale Method" (European Standard)

ASTMD4966-2010 "Fabric Abrasion Resistance Test Martindale Abrasion Tester" (American Standard)

ISO12947-2007 "Determination of Textile Abrasion Resistance by Martindale Method" (International Standard)

Company Contact:

• Posted By: Qinsun Instruments (Shanghai) Co., Ltd.

• Phone: +862164200566

• Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

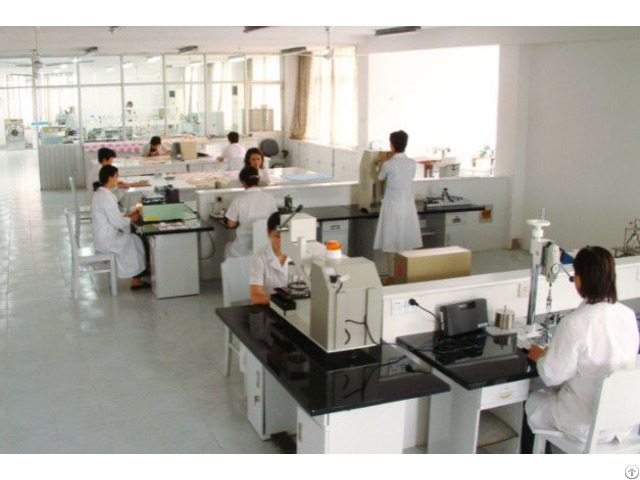

  We have our own textile testing lab.
