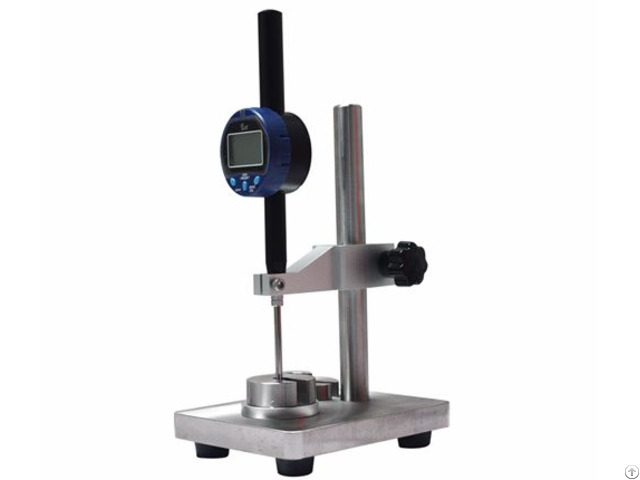

Iso 5084 Fabric Thickness Gauge - China
price: check with company for price
Fabric Thickness Gauge Testing Standards:
JIS L1096/L1018, GB/T 3820, ISO 5084 Applications:
Fabric Thickness Gauge is an apparatus to measure the thickness of fabric, knitwear, film, rubber, soft urethane form.
Product Information:
Fabric Thickness Gauge has a complete assortment of the pressure-foot and weights to conform the different test-methods.
As Analogue type is suitable for general textile and floor carpets mainly, digital type is suitable for pile fabric and knitted cloth.
The other pressure foot area and weight for special purpose can be manufactured as the user's requirements.
Technical Parameters of Fabric Thickness Gauge:
1 - Measuring capacity (Standard-type): 0～10mm
2 - Min.
reading: 0.01mm
3 - Area of pressure (Standard-type): 20cm2(φ: 50.5±0.01mm)
4 - Measuring pressure: 0.3kPa (3gf/cm2), 0.7kPa (7gf/cm2), 1.0kPa (10.2gf/cm2)
5 - Access.
weight: 80g (for 0.7kPa), 144g (for 1.0kPa)
6 - Dimensions (approx.
): W120×D150×H200mm
Company Contact:
- Posted By: Qinsun Instruments Co., Ltd
- Phone: +862167800179
- Address: No.258 Banting Road, Songjiang District Gu Dai Road, Shanghai, Shanghai , Shanghi , China
- Email:
- Website: https://www.qinsun-lab.com
Published date: October 22, 2017
- Business Description: Qinsun Instruments Co., Ltd was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.
Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.
Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.
