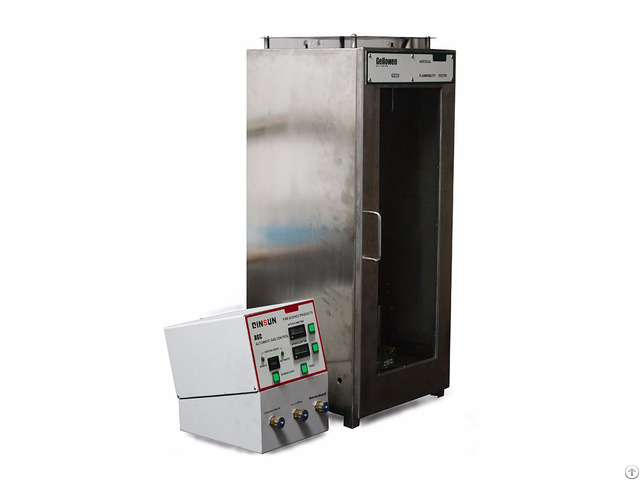

Iso 6940 Textile Vertical Flammability Tester - China

Vertical Flammability Chamber for measuring the vertical flame spread for childrens’ sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture.

Comprises a draft free stainless steel cabinet with observation window and back wall painted black for easy test viewing.

The different specimen holders and associated hardwares are dependent on the test standards.

Automatic Gas Control System could easily control the combustion process.

Product Information:

Technical Parameters:

A.

With a sealing free stainless steel combustion cabinet with observation window;

B.

With standard combustion chronograph, for accurate detection of flame spread rate;

C.

The different specimen holders and associated hardwares for various test standards;

D.

Automatic Gas Control System including solenoid control gas valve and automatic ignition timer and controls.

Configuration and consumables:

AUTOMATIC GAS CONTROL, 230V Automatic Gas Control System

Accessories for ASTM D6413-99 TEST PKG(VFC, REQ), FTMS 191-5903(Fabrics) Standards:

ASTM D6413-99, DOC-FF 3/71, CALIF TB-117, GB/T 5455, CPAI-84 Include:

- 1 x Burner

- 5 x Specimen Holders

- 1 x Weights Optional:

1 - CHILD.

SLEEPWEAR TEST PKG(VFC, NA)

Accessories for DOC-FF3/71 (Childrens’ Sleepwear) 2 - CALIF.

TB-117 TEST PKG

Accessories for CALIF TB-117 (Resilient Filling Materials Vertical) 3 - CPAI-84 TEST PKG

Accessories for CPAI-84(Tent)

Include: Burner, Specimen Holder, Weights Vertical Flammability Tester Specifications：

Time Display and accuracy: 0-999.9s, 0.1s

Ignition time: 12+/-2 s or 3+/-0.2 s

Burner size: Dia.

10mm or Dia.

11mm x barrel length 76+/-6mm

Distance from burner to specimen: 19 or 17 mm

Dimension of holder: outside 442 x 76 / 442 x 89mm, interior 356x51 mm

Timing: PLC controlled

System and Display: Programmable PLC system to control automatically, text display Included Accessories：

1 Specimen template

4 Char length loading weights

1 Sample Holder

1 Steel scale

Vertical Flammability Chamber
