Iultcs Rubbing Fastness Tester - China

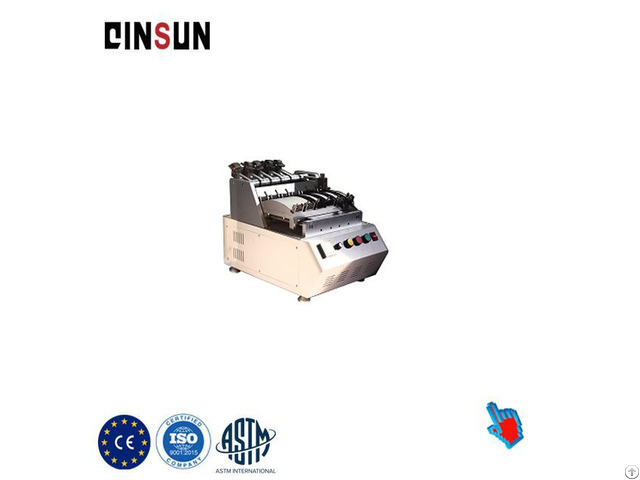

IULTCS Rubbing Fastness Tester, designed to carry out a rub fastness test on the surface of leather to determine the amount of ‘marring’ of the leather surface or the finish and to assess the amount of colour transferring from the sample to the rubbing pad under dry or wet conditions.

The unique design of IULTCS Rubbing Fastness Tester allows reliable and stable test result.

Impact appearance and construction design offers a good shape and convenient operation, also allows a long life time without repairing.

Available with a piece of 500g loading weight, thus allows a test with 500g or 1000g loading.

Equipped with an extension device so samples can be extended at a required rate.

Two models of single and double test position are offered.

The rubbing color fastness tester is a standard testing machine of the Type II rubbing tester (GAKUSIN TYPE) specified in JIS L0849 Test Method of Rubbing Fastness in JIS Textile-Tests For Color Fastness.

It is applied to determine the color resistance of dyed or printed textiles to rubbing thus providing evidence for textile products R&D and acceptance inspection.

It is reported that this tester is stricter than the ordinary horizontal reciprocation rubbing color fastness tester whose evaluating results are worse with the same specimen tests.

Textiles exported to Japan should present test results by this device.

50mm rub heads and auxiliary weights are equipped for cardboard rubbing resistance tests.

Features

1 - By changing optional accessories, it is versatile for a variety of specimens tests such as flocking resistance test for flocking, color fastness for artificial leather, rubbing resistance for cardboard, fastness for printing ink and coating, etc.

; horizontal reciprocation rubbing color fastness test can be carried out by changing the test bed.

2 - Test cycles can be set (electronic), automatic counting; start buzzing after counting finished.

Standards

JIS L0849, JIS L1084, JIS L0862, JIS P8136, JIS L1084

Specifications

Model : 238D

Stations : 6

Rub heads: Curved surface R45mm, width 20mm

Rub heads load: 2N

Rub area length: 100mm

Reciprocal speed: 30rpm

Load weight: 300g, 500g, 800g

Rub cloth fixing method: Spring clip

Counter: 220V, 50Hz

Configurations

Base unit

G238D JIS rubbing color fastness tester

23803 Abradent fabric*1 box, 1000 pieces/box

Optional parts

238D1: Planar rub heads

238D2: Planar test bed

238D3: R50mm rub test (JIS P8136)

238D4: R1.5mm rub test(JIS P8136-flocking strength)

SZ320: #320abrasive paper

ZS: Grey scale (staining)-ISO/BS standard

23807: Grey scale (staining)-AATCC standard
