Laboratory Complex Salt Fog Cyclic Corrosion Climatic Environmental Cabinet Test Chamber Room - China

price: 19000.00 Dollar US$

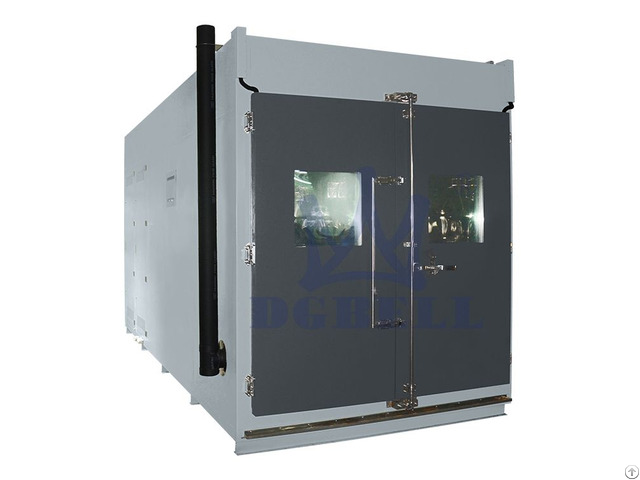

Laboratory Complex Salt Fog Cyclic Corrosion Climatic Environmental Cabinet Test Chamber Room

Products Photos Catalog Laboratory Complex Photos Catalog

Relevant standards requirement: 1 - Test Object: battery pack and system.

2 - Refer GB/T28046.4 part 5.5.2 test method, test according to GT/T2423.17 test conditions.

3 - The salt solution was made up with sodium chloride (chemically pure and analytically pure) and distilled or deionized water, Its concentration is (5 + 1)% (mass fraction).

(35 ± 2) ℃, the measured pH value is between 6.5-7.2 - 4 - Placed the test objects in the salt spray chamber for cycling test.

Each cycling duration for 24h.

Spray salt solution to the test object for 8 hours under the temperature of (35 ± 2) ℃, remain for 16 hours.

Between the forth and the fifth hour in one cycles should be according to test requirement in GB/T 28046.1-2011, test mode with 3.2 - 5 - Total 6 cycles testing.

6 - Salt spray test is not necessary for the test objects being installed in passenger, luggage or cargo compartments.

Features: 1 - Control Mode: Touch screen programmable control PLC, networking; mobile phone APP alarm; with USB interface, with RJ485 interface can be connected to computer control, exclusive network control software.

Remote monitoring and data acquisition.

2 - Other Auxiliary Functions: 1) Main-subsidiary type trolley for specimen in and out of the test chamber.

2) Explosion-proof, Pressure relief, Smoke exhaust, Fire extinguishing, Video monitoring.

Product specification: Product Name Complex Salt Spray Test Chamber Model No.

BE-8209-12m³ BE-8209-15m³ Internal Dimension W2000 X D3000 X H2000 mm W2500 X D3000 X H2000 mm External Dimension W2400 X D5000 X H3000 mm W2900 X D5000 X H3000 mm Performance parameters: Max Load 1000KG for battery pack Temp.

Range 0℃~+85℃ Temp.

Fluctuation ±0.5℃ Temp.

Deviation 2℃ Spray Capacity 1~2mL/80cm2/hr (Collect at least 16 hours, take the average ) Spray Pressure 1.00±0.01kgf/cm² Resolution Temp: 0.01℃, Humidity: 0.01%R.H. Humidity Range 30%--98%R.H. Humidity Fluctuation ±3%R.H. Potion PH Neutral 6.0~7.0 Acidity 3.0~3.1 Spray Solution PH Neutral 6.5~7.2 Acidity 3.1~3.3 Test Time Range 1S ~ 9999H (Settable) Internal material Acid and alkali resistant SUS316 material External material Cold and heat resistant steel plate with spray coating Cooling Mode Air cooling / water cooling Total Weight Approx 7 Tons Power Supply AC 380V, 55KW


Company Contact:


  • Phone: +86 136 1276 1334

  • Address: No. 11, Wusong 1st street, Yuwu, East City District, Dongguan , Guangdong , China

  • Email: Email


Published date: December 26, 2019

  • Business Description: Our company is specialized in Battery Safety ( Performance ) Testing Equipment and Environment ( Climatic ) Reliable Test Chamber over ten years.

    And the machine is design and manufacture according to the relevant standards such as GB, GJB, IEC, ISO, MIL, DIN, CE, ASTM, UN, UL etc.
