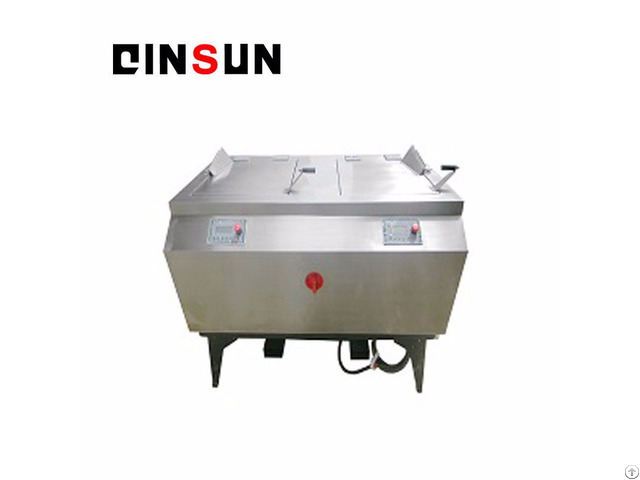

Launder Ometer Washing Color Fastnesss Tester - China

Introduction

Launder-ometer /washing color fastnesss tester can be used for washing, dry cleaning color fastness test.

Double cylinder separation, respectively, with an independent operation control panel, can be carried out two different temperature experiments at the same time.

Electronic touch switch, LCD menu display and no mechanical contact, are safe and reliable.

The sample rack is stable and reliable, and it is convenient to replace the washing cup.

Equipped with 500ml and 1200ml two kinds of washing cups, each cylinder contains 24-cup card slot (big and small size of each 12), to meet the needs of different test standards.

The heating tube has no noise, long service life and accurate temperature control.

Application

The Launder-ometer /washing color fastnesss tester is used for color fastness test of various textiles, dry color fastness, rinse color fastness, detergent performance and other washable, dry clean color fastness test.

Its maximum temperature is up to 95 ℃.

Also, it can be used to test the color fastness to washing .

Standards

ISO 105 C01/C02 /C03 /C04 /C05 /C06 /C08/ D01 T​e​x​t​i​l​e ​s​ ​-​-​ ​T​e​s​t​s​ ​f​o​r​ ​c​o​l​o​u​râ €‹ ​f​a​s​t​n​eâ €‹s​s

BS 1006 C01 /C02 /C03 /C04/ C05 Methods of test for-Colour fastness of textiles and leather.

AATCC 28 /61/86/132/151/190 Anti - pest treatment of textiles

NEXT TM2/3/ 5 Textiles - Tests for colour fastness

M&S C4 C5 C10A P3B T​e​x​t​i​l​e ​s​ ​-​T​e​s​t​sâ €‹ ​f​o​r​ ​c​o​l​o​u​râ €‹ ​f​a​s​t​n​eâ €‹s​s(Dry cleaning)

GB/T 3921/5711 Textiles--Tests for colour fastness--Colour fastness to washing: Test 1

FTMS 191-5610 Technical Parameters

Test container position: (12+12) ×2; can be a different standard test at the same time.

Rotation speed: 40 ±2 rpm

Equipment control: Numerical control.

At the same time independent control of the two test box temperature and time, you can freely set the program.

Washing test cup size : 1200±10ml and 550±10ml

Each test box has a rotary motion function

Automatic alarm function

The structure adopts 316 stainless steel material

Sample cup quick exchange function

Temperature control maximum temperature is up to 98 ℃

Temperature accuracy: -/+0.3℃

Temperature control: controlled by the microprocessor, the interface can display the temperature and time

The test cover has a double-layer insulation effect, which minimizes heat loss, reduces frequent heating frequency, and effectively protects the life of the heater

The test panel adopts pneumatic support rod, which is more humanized, saves manpower, and has the function of protecting operators;

Overflow alarm function

Anti-dry alarm function protects the equipment from damage

Hidden pressure relief function: The hidden snakelike pressure relief helps to refrigerate the steam to cooling water when internal press exceeded;

The forklift makes a movement for the machine.

Accessories and consumables:

Double cylinder - wash color fastness machine

550ml stainless steel test cup, 16 pieces

1200 ml stainless steel test cup, 16 pieces

2, 000 stainless steel beads for washing

550 ml stainless steel test cup wash seal gasket, 20 / bag

1200 ml stainless steel test cup wash seal washer, 20 / bag

550 ml stainless steel test cup dry cleaning seal gasket, 20 / bag

1200 ml stainless steel test cup dry cleaning seal gasket, 20 / bag

Stainless steel dry cleaning tablets, 50 pieces

DW type multi-fiber woven fabrics, 10m/bag

American standard multi-fiber lining fabric, 1 m/bag

ECE standard detergent (excluding fluorescence) 2 barrels

American standard detergent (excluding fluorescence) 2 barrels
