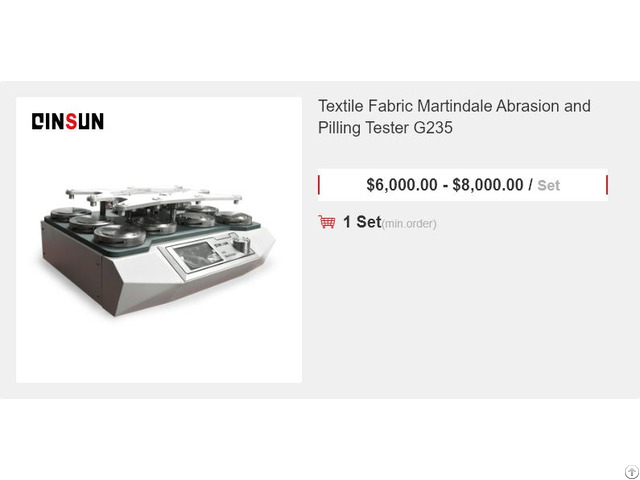

Martindale Abrasion And Pilling Tester Configuration Standard - China

Martindale Abrasion And Pilling Tester configuration standard Martindale Abrasion And Pilling Tester

It can detect the abrasion resistance and pilling performance of various plants.

Under a certain pressure, the sample and the specified abrasive are subjected to continuous commutation friction, and the degree of wear and pilling are evaluated in comparison with the standard parameters.

Touch screen control, equipped with a full-featured programmer, batch and total count can be pre-programmed, and the count of each test head can be set individually; 4 speeds including standard speeds can be selected.

Standards compliant: ASTM D4970 ISO 12945.2, GB/T 4802.2/13775/21196.1/2119 6.2 ASTM D4966 ISO 12947 FZ/T 20020 BS 3424-24/5690 ISO 12947.1/12947.2 M&S P17/P19/P19C NEXT 18/18a/18b ISO 5470-2 IWTO -40 JIS L1096 8.17.5 Method E Woolmark TM 112/196 BS EN 388/530/13770 ISO 20344 technical parameter: 1 - Number of stations: 9; 2 - Counting range: 0～999999 times 3 - Maximum stroke: horizontal 60.5±0.5mm, vertical 24±0.5mm 4 - Mass of pressurized material: a.

Holder: 200±1g b.

Clothing sample weight: 395±2g c.

Furniture decoration sample weight: 594±2g d.

Stainless steel butterfly: 260±1g 5 - Effective friction diameter of grinding block: A type 200g (1.96N) friction head (9KPa) ￠ 28.8 -0.084mm Type B 155g (1.52N) friction head (12KPa) ￠ 90 -0.10mm 6 - The relative speed of the gripper and the grinding table: 20-70r/min (adjustable) 7 - The weight of sample loading hammer: 2385±10g Instrument configuration and consumables: 1 - 9 sets of sample holders; 9 weights each for 2.9Kpa and 12KPa; 3 - One set of Φ38mm and Φ140mm samplers; 4 - Φ38mm, Φ140mm sampler backing plate each; 5 - A set of pilling test kits; 6 - A set of SM50 standard sample photos; 7 - A set of EMPA standard pilling sample photos and a SM-25 standard abrasive cloth 1.6m×5m; 8 - A set of standard foam 1.5m×0.5m (4 pieces/set); 9 - One piece of standard felt fleece; 10.20 pieces of Φ90mm felt discs; 11 - Φ38mm, Φ140mm sampler blades each with 50 pieces; 12 - Other necessary accessories recommended by the manufacturer.

Reasons for choosing us: 1 - We have an after-sales service team.

The company has been engaged in the testing industry for more than ten years, and has accumulated rich practical experience.

It can handle various problems in a timely and fast manner, and relieve customers from worries; 2 - The spare parts are available to solve the problem of long delivery time for ordering spare parts; 3 - Provide outsourcing repair and maintenance services; 4 - We keep up with industry standards updates, provide timely testing instruments that meet the updated standards, and provide personal testing and consulting services; 5 - Supply for many years, customers are welcome to call for inquiries!

Meet the requirements of BS-3144, JIS-K6545, CNS-7705, ASTM-D2813 and other standards.

PS: (WLJCDM809)
