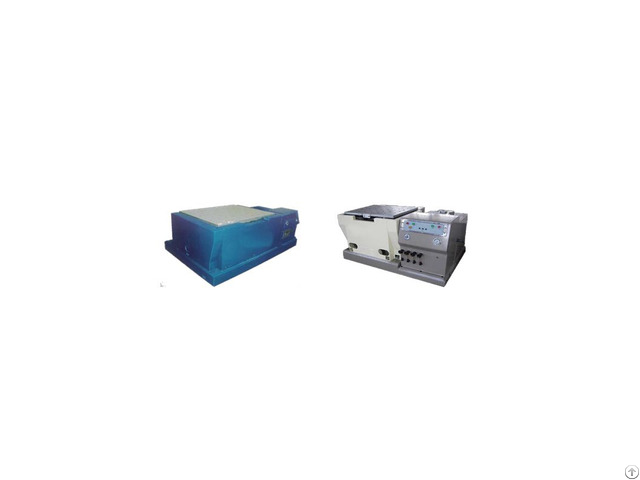

Mechanical Vibration Test System - China

Mechanical vibration test system is used for various products to conduct vertical and horizontal vibration tests, to meet the requirements of relevant test indexes.

The test system has a reasonable structure, reliable working and simple operation.

This series of mechanical vibration test system is suitable for vibration test of electronic elements, components, mechanical and electrical products, instruments and meters, and others.

It can conduct the process test and fatigue test for the relevant products according to the test requirements.

Functions and features: 1 - The amplitude is steplessly adjusted;

2 - No forced guidance, no need for special foundation;

3 - The vibration frequency is steplessly adjusted; be able to do fixed frequency and automatic sweep frequency;

4 - Frequency conversion controls speed, and computer controls measurement; man-machine conversation, complete functions; Model: KCT80-1000;

Max.

load (kg): 1000kg;

Frequency range (Hz): 5~60;

Sweep frequency range (Hz): 5~60;

Sweep frequency method: constant displacement index /linear sweep frequency;

Time setting range (min): 0.1~1440;

Max.

acceleration under full load (m/s2): 30;

Moving parts weight (kg): 500;

Max.

displacement (p-p, no load) (mm) : 8;

Vibration direction: Vertical/ horizontal;

Vibration waveform: Sine wave;

Power supply and consumption power: AC 380V 18 kVA;

Control mode: Frequency conversion speed control single-chip microcomputer control /PC control;

Table size (mm): 1800*1500;

Environment: Temperature: 0~40℃, humidity: ≤80%, (non condense);
