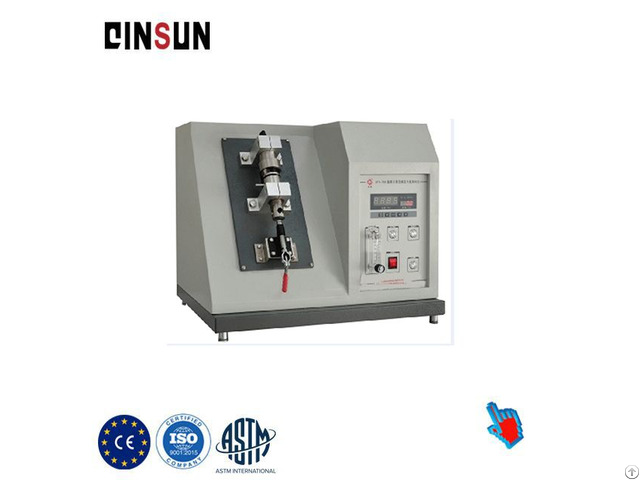

Medical Face Mask Air Exchange Pressure Difference Tester - China

Products meet the standard requirements, which is YY0469-2004 "Medical surgical mask technical requirements" and YY 0969-2013 "Disposable medical masks", medical face mask air exchange pressure difference tester is measured by gas pressure difference on both sides of the mask (ie the damping from the mask exert to the airflow) to determine the breathability of the mask, and the instrument test results is accurate.

The device is used for the determination of gas exchange pressure difference of medical surgical masks and can also be used to determine the gas exchange pressure difference of other textile materials。 YY 0469-2011 Surgical mask

YY 0969-2013 Single-use medical face mask

EN 14683: 2014 Medical face masks - Requirements and test methods

1, using the suction gas source as the instrument power source, free from test space constraint;

2, with a high precision differential pressure sensor, digital show the sample pressure of both sides;

3, special sample holder to ensure a good clamping sample.

Technical Parameters

Items Parameters

Air supply Suction type

Air flow 8L / min

Seal type O-ring seal

Sample breathable diameter Φ25mm

Differential pressure sensor range 0 ~ 500Pa

Display mode Digital display pressure difference

Power supply 220V, 50Hz
