Mems Angular Gyroscope Sensor - China

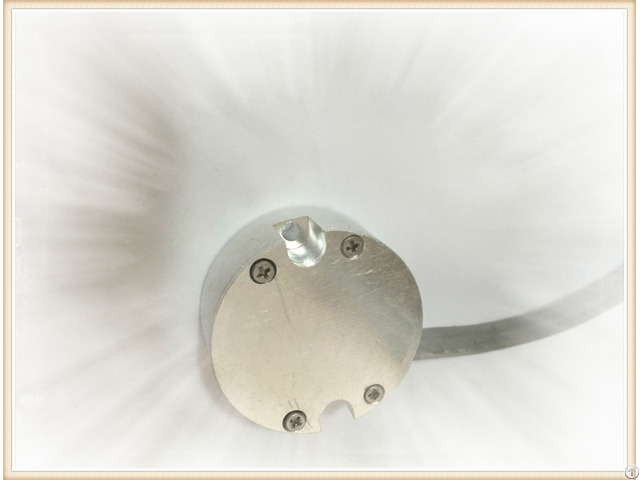

SDI-ARG is a solid-state sensor that used for measuring angular rate.

This product adopts MEMS chip, chooses components of military standard, and meets the requirements of GJB9001-B2009, so that it can successfully passed the certification of quality system.

Features:

1 - Small temperature drift

2 - Low noise

3 - Small size

4 - Light-weight

Applications:

1 - Inertial navigation

2 - Inertial measurement

3 - Adjusting antenna

4 - Stabilizing platform

Performance:

Type SDI-ARG-80A

Range( ° /s) ±80

Bias Voltage (V) 2.5±0.05

Sensitivity (mV/° / s) 25±2

Full Scale Output (V) 0.5 to 4.5

Bias Stability(100s)( ° / s) ≤0.07

Bias Stability(1800s)( ° / s) ≤0.1

Nonlinearity (%FR) ≤0.5

Resolution( ° / s) ≤0.05

Sensitivity Variation of Total Temperature (%) ≤±2.5

Bandwidth (Hz,-3dB) 50

Bias Voltage Noise(mV) ≤6±2

Sensitivity of G-value

( ° / s / g) ≤0.06



Starting Time(ms) ≤50

Reliability 100000hour s

Electrical

Input Voltage(VDC) +3 to 28

Operating Current(mA) ＜20

Environmental

Operating Temperature(℃): -40 to 105

Storage Temperature(℃) : -55 to 125

Bump (g) (0.5ms): 2000

Physical

Dimension (mm) Ф 30×12.5

Weight (g) ＜18
