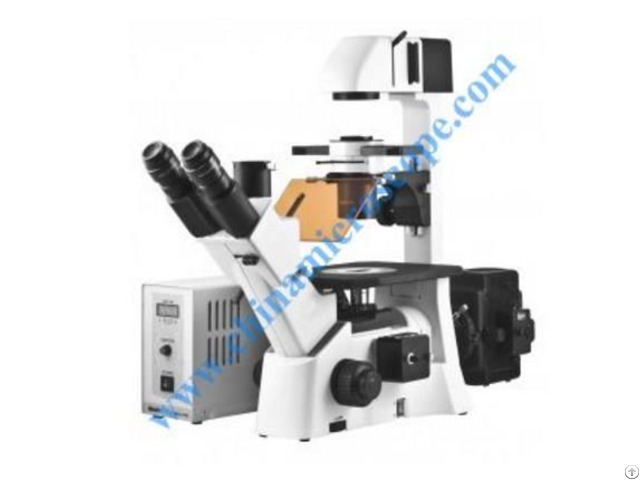

Mic Ef3 Inverted Fluorescent Microscope - China

Product Description A class leading inverted microscope offering upscale research functions in the routine realm.

The MIC-EF is an inverted microscope for the routine realm, but offers upscale research functions, such as fluorescence and an externally mounted and centrable 30W/6V halogen Koehler illumination.

Complementing the uniform illumination is the ELWD 0.30 N.A. condenser with its 72mm working distance for large sample and carriers, which can be adjusted and centered to provide the optimum amount of illumination for each sample.

Furthermore, the condenser is equipped with a slider stop for the equipped standard centrable PH 1 and PH 3 Phase slider.

An optional LWD 0.50 N.A. condenser [WD=28mm] is available should the need arise.

Driven for applications, the MIC-EF incorporates the Color Corrected Infinity Optical System [CCIS] to power system expansions and to produce, along with the CCIS Plan Achromatic inverted objectives, crisp, flat and high contrast images in field flatness up to F.N.22 - These images can be viewed for hours upon hours in fatigue free manner thanks to the comfortable 45° observation angle and viewing height of 380mm [400mm – trinocular], which is the ideal height from the laboratory tabletop to the users’ eyepieces.

Assisting the angle is the Siedentopf system [50-70mm] for setting the correct interpupillary distance and the adjustable high eye point WF10X eyepiece, which can be adjusted ±5° for individual astigmatism and aligning reticules.

Supporting all these applications and functions is the MIC-EF 's stable inverted "Y" designed stand.

The inverted "Y" provides the necessary stability and weight distribution to handle the attachment of Epi-fluorescence and other accessories.

The stand features low position focus mechanisms to alleviate wrist strain while adjusting the focus at 1mm minimum increments throughout the 10mm stroke range.

The stage sits at a height of 207mm for rapid sample changes.

A universal mechanical stage [tilted adjustment] is available as an option plus a series of Petri dish holders.

Specification Trinocular head Siedentopf type, 45º inclined (light split 100: 0/20: 80) Optionally Trinocular head with light split (100: 0/0: 100) Wide-field high eye point eyepieces WFPL10X/22mm with diopter adjustment on both eyepieces, with rubber eyecups Centering telescope Side facing quintuple nosepiece CCIS Plan Achromatic objective PL4X CCIS Plan Achromatic Phase objective PL PH10X, LWD PL PH20X, LWD PL PH40X Plain stage, glass and metal inserts ELWD N.A. 0.30 condenser Phase slider, centrable PH1, bright field, PH3 Koehler illumination quartz halogen 6V/30W with external lamp house and intensity control
