Mining Overhead Manned Equipment Wireless Multi Parameters Tester - China

Model: CJKD8W Description: CJKD8W Mining Overhead Manned Equipment Wireless Multi-Parameters Tester

MFA: MA170066

Patent No.

ZL 2012 2 0543821.6 Introduction:

Main function is inspecting safety performance of manned equipment.

Inspect load operation and no load operation, braking device performance, max preload tension on tail-wheel, hydraulic system.

Collecting operation speed, braking force, oil pressure parameters to analysis equipment performance and find out potential risk.

At the same time, it can be also used for inspection of monorail hoist.

It has multi-function and saves cost.

Features:

1 - Software cloud synchronization.

2 - Easy to process, animation interaction.

3 - Good design, wireless, networking transmission.

4 - Intelligent and scientific analysis.

5 - Data review and data fast transmission.

Product structure:

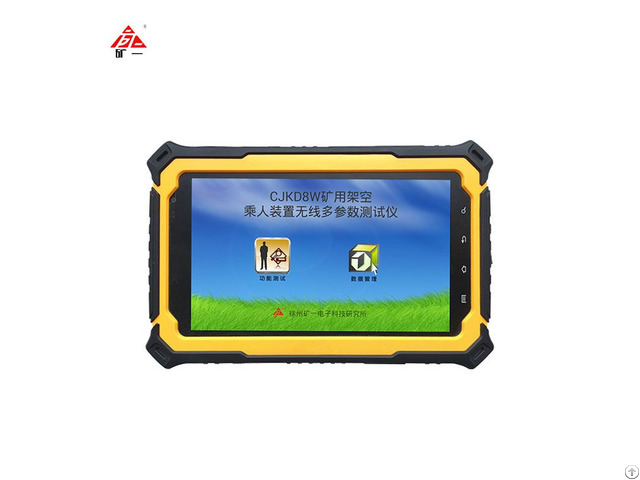

1 - KJD3.7 mining intrinsic safe tablet (MAB160279)

2 - GWSP85/98/1200 mining intrinsic safe wireless temperature and humidity, atmospheric pressure sensor (MFB160127)

3 - GPD60W mining intrinsic safe wireless pressure sensor (MFB160139)

4 - GSG16W mining intrinsic safe wireless speed sensor (MFB170053)

5 - GLD200W mining intrinsic safe wireless tension sensor (MFB170063)

6 - GUD180W mining intrinsic safe wireless tilt sensor (MFB170059)

7 - GD100W mining intrinsic safe wireless timer (MFB170061)
