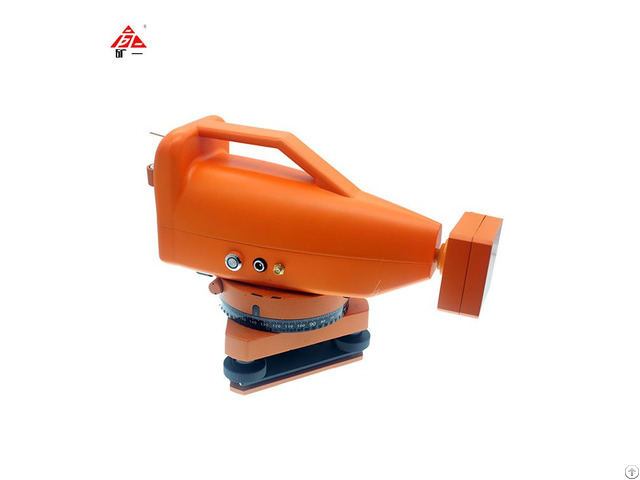

Mining Roadway Section Wireless Meter - China

Model: CDM2W

Description: CDM2W Mining Roadway Section Wireless Meter

MA: MFA170056 Introduction: 1 - Measure coal mining roadway ventilated area, perimeter, wide, high.

2 - For roadway ventilation control, it can monitor the section fast and accurately.

3 - Through measuring given point, analysis roadway’s mine pressure deformation.

4 - It owns explosion-proof function as well.

5 - It can be used in methane (CH4) explosion gas environment.

6 - Laser measurement has fast speed, high precision, direct reading and portable features.

7 - Applicable for large roadway, irregular roadway section especially.

Product structure:

1 - KJD3.7 mining intrinsic safe tablet (MAB160279)

2 - CDM2W-C mining roadway section wireless tester collector (MFA170059) Technology parameters:

1 - Basic parameters

Parameter Basic parameters range resolution error range

Radius 0.3-100m 0.001 ± 1mm

Angle 0°~360° 0.1 ± 0.1° 2 - Display: LCD screen, real-time display, electric quantity indication and date/time display functions.

3 - Storage: USB interface, data storage.

4 - Intelligent alarm: It will cause alarm when test value is greater than set value.

5 - Sampling time: can be set.

6 - Sampling rate: can be set base on different demand.

7 - Recharge: special power adapter with indication function.

8 - Working time: 8 hours.

9 - Battery: 3.6V, 4 lithium manganite batteries, 4000mAh per battery.
