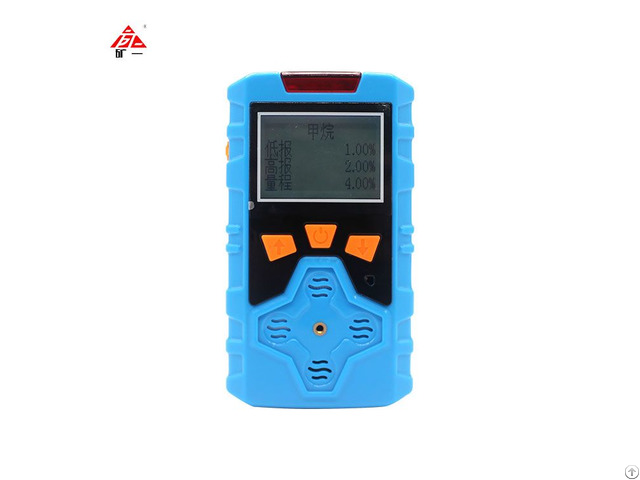

Multi Parameter Gas Detector - China

Model: CD4

Description: CD4 Multi-parameter Gas Detector

MA: MFA150188 (National safety sign for coal mining products)

KA: KFA150017 (National safety sign for mining products)

ExibI : 320150860 (Intrinsic safe and explosion-proof products certificate)

ExiaII: CMExC17.4385 Introduction:

1 - Detect the gas concentration of CH4, O2, CO, H2S.

2 - 8 digitals micro-controller as control unit, high sensitivity and fast response speed, high precision detecting element.

3 - Large LCD screen to ensure high definition display.

4 - Detector will cause luminescence and voice alarm if gas concentration is over standard.

Technology parameters:

1 - CH4:

Measuring range Error expected

0.00~1.00 ± 0.10

1.00~3.00 Truth value ± 10%

3.00~4.00 ± 0.30

2 - O2

0.0~5.0 ± 0.5

>5.0~30.0 Measuring value ± 3% 3 - CO 0~20 ± 2 ——

>20~100 ± 4 ——

>100~500 —— Truth value ± 4%

>500~1000 —— Truth value ± 5%

>1000~2000 —— Truth value ± 6%

4 - H2S 0~49 ± 3

50~100 Truth value ± 10%

>100~500 Truth value ± 15% 5 - Response time: T<30s

6 - Indicating method: LCD screen displays real-time data and system status.

7 - Working environment: temperature -20℃~50℃

8 - Humidity < 95%RH, no condensation

9 - Voltage: DC3.7V

10 - Recharge time: 6h~8h

11 - Stand-by time: >8 hours

12 - Sensor lifetime: 2 years

13 - Levels of protection: IP65

14 - Dimension: 68mm×33mm×124mm

15 - Weight: 400g
