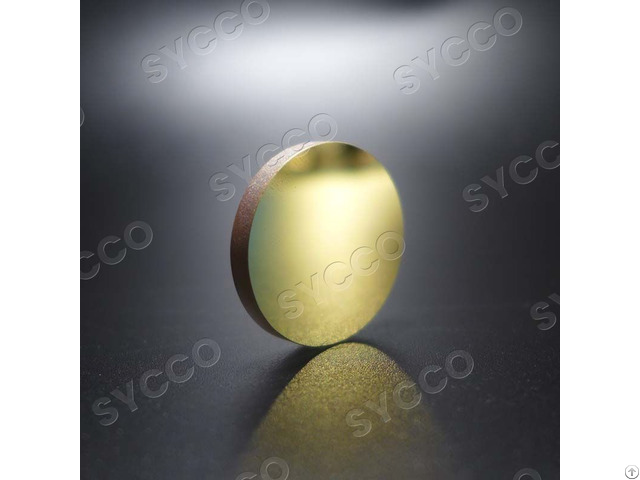

  • Optical Glass Mirrors - China

    price: contact company for price

    Optical Glass Mirror is an object with a surface that has high reflection.

    It is smooth enough to form an image.

    The most familiar type of mirror is the plane mirror, which has a flat surface.

    Curved mirrors are also used, to produce magnified or diminished images or focus light or simply distort the reflected image.

    Mirrors are used in scientific apparatus such as telescopes and lasers, cameras, and industrial machinery.

    Most mirrors are designed for visible light; however, mirrors designed for other types of waves or other wavelengths of electromagnetic radiation are also used, especially in non-optical instruments.

    Optical Components Mirrors Specifications:

    Attribute General High Precision

    Material BK7 (CDGM H-K9L) BK7 (CDGM H-K9L)

    Dimension Tolerance: +0.0/-0.2mm +0.0/-0.02mm

    Thickness Tolerance: ±0.2mm ±0.005

    Surface Quality: 60/40 10/5

    Clear Aperture: >80% >95%

    Flatness: 1λ λ/10

    Parallelism: <3 arc min.

    <3 arc sec.

    AR Coated: HR coating, Al coating, Ag coating HR coating, Al coating, Ag coating


    Company Contact:


    • Phone: +86 635 2952 888

    • Address: North-South 1st Road, Xiangguang Economic Development Zone, Yanggu, Liaocheng , Shandong , China

    • Email: Email


    Published date: September 3, 2024

    • Business Description: Shandong Yanggu Constant Crystal Optics,Inc was established in April 2006, located in Xiangguang economic development zone, Yanggu County,Shandong Province.

      We are specialized in researching, producing and saling optics and optical components.

      Our main products include optical window,prism, lens, beamsplitter, filter, wedge, blanks and etc.

      We also provide customized service according to customers requests.
