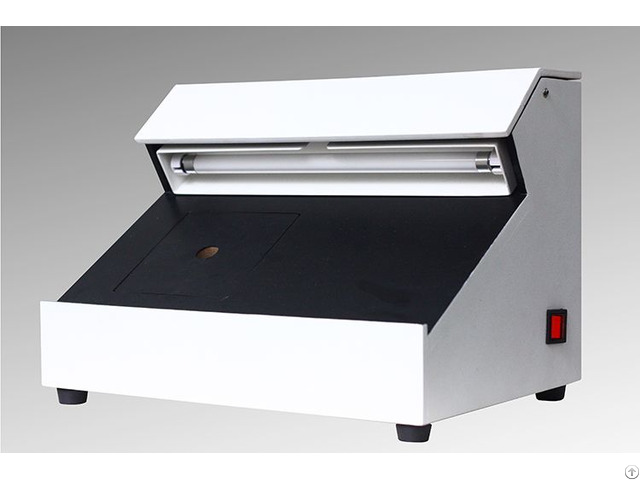

Pav Rating Tester Universal Pilling Assessment Viewer - China

price: 1.00 Dollar US$

Universal Pilling Assessment Viewer/PAV rating tester: Pilling Assessment Viewer (PAV) is available for assessment standards of all pilling and snagging tests.

The assessment result is achieved by comparing the sample to the standard card under the specified light source.

It is an auxiliary assessment tool for the Martindale Pilling Test, ICI Ball test, ICI snagging test, Random tumble of pilling test, Circular locus method pilling test and others.

It is widely used in textiles and clothing industry, meets with most of the pilling test standards.

Technical Parameters:

Items Parameters

Size length x width x height (L x W x H): 240mm x340mm x 280mm

Observation area size length x width x height (L x W x H): 240mm x340mm x 165mm

Weight 10kg (22lbs)

Light source D65: Artificial daylight source, suitable for the occasion that require color consistency and color quality, meets with CIE accurate color evaluation requirements.

Color temperature 6500K, power 20w.

Light source CWF (optional): cool white fluorescent, general shop / office lighting wide band fluorescence.

Color temperature 4150K, power 20w.

Standards compliant:

BS 5811 Test method for fabric pilling resistance and deformation resistance

BS EN ISO 12945 Textiles - Determination of the pilling tendency of the surface of the fabric

ASTM D 3512 Test method for random tumble of pilling tester

ASTM D 4970 Test method for pilling resistance and other related surface changes in textiles

ASTM D 5362 Standard test method for the performance of anti - snagging of fabrics

IWSTM 152; Next TM 19/26 Applications:

Martindale pilling test;

ICI pilling test;

ICI hook test;

Chaos from the ball test;

Round track method pilling test.


Company Contact:


  • Phone: +862164200566

  • Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

  • Email: Email


Published date: November 8, 2019

  • Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

    Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

    Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

    We have our own textile testing lab.

    Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

    We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

    We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

    For the laboratory requirements, we also bring forth the new practical test instruments.

    Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
