Pesticide Residue Teser - China

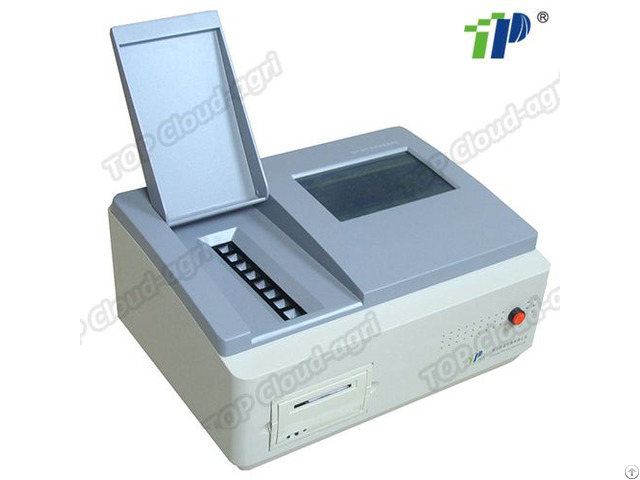

Name: Pesticide Residue Tester 1 - Principle of Instrument

Pesticide Residue Tester is based on cholinesterase catalyzing acetylcholine, its hydrolysate impacts DTNB to form yellow AZO.

Organophosphate pesticides has effect on enzyme.

Through changes of absorption value show the degree of inhibition and further reflect the pesticide residue in samples.

The instrument consist of LED, thermostatic color pool, integrated photoelectric sensors, ARM9 microprocessor and miniature printer and can print directly and transit result of testing.

2 - Characteristics

Testing pesticide residue in onion, garlic, ginger, fragrant-flowered garlic, carrot tomato, vegetables etc.

Color reaction under room temperature condition, fast testing speed

Plastic shell, streamline appearance, 6 inch color LCD displayer, easy to operate

High sensitivity to methamidophos, dichlorvos and so on

Adopt ARM9 inserting controlling system, with the function of saving, collecting, processing, analyzing 3 - Technical parameter

The test items, detection limit, detection range:

test items

detection limit

detection range

pesticide residue

0.1-20mg/kg

0-100%

( inhibition ratio)

Transmittance accuracy: ≤±1.5%;

Transmittance repeatability: ≤ 0.5%

Linear error: ≤5%

Mode of display: LCD

Interface: network

Working environment: temperature: 0~40°C, humidity: 35~85%

Power adaptor: 220V to 5V/5A

Size: 38CM * 30CM* 17CM
