Portable Nondestructive Testing Instrument For Steel Wire Rope - China

Model: CGT3

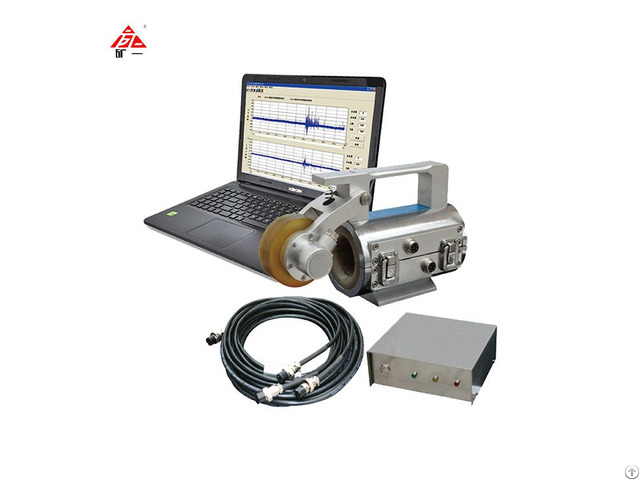

Description: CGT3 Portable Nondestructive Testing Instrument for Steel Wire Rope

Patent No.

ZL 2013 2 0088253 - X Software Copyright Introduction: 1 - The latest testing instrument technology, advanced inspection, digital processing and network technology.

2 - Real-time display the situation, such as inside/outside broken wire, corrosion, wear, quantitative numerical of metallic cross sectional area, then provide diagnostic report and solution.

3 - Fast diagnostic to save inspection time, improve work efficiency.

4 - Portable, simple operation and only need simple training to user.

5 - High precision, good repeatability, accurate location.

6 - Applicable for mine, cable-way, hoisting equipment, elevator, port machinery and cable-supported bridges.

Technology parameters:

1 - Steel wire rope diameter range: Φ1.5~300mm (Need to configure different sensors).

2 - The relative velocity between steel wire rope and sensor: 0.0~12.0m/s.

Best effect: 2.0 m/s.

3 - Localized fault detecting ability.

4 - Loss of metallic cross-sectional area (LMA) detecting ability.

5 - Error expected for detecting sensitivity and repeatability: ± 0.05%.

6 - Error expected for detecting precision: ± 0.2%.

7 - Error expected for detecting length: ± 0.3%.

8 - Applicable for windows operation system.
