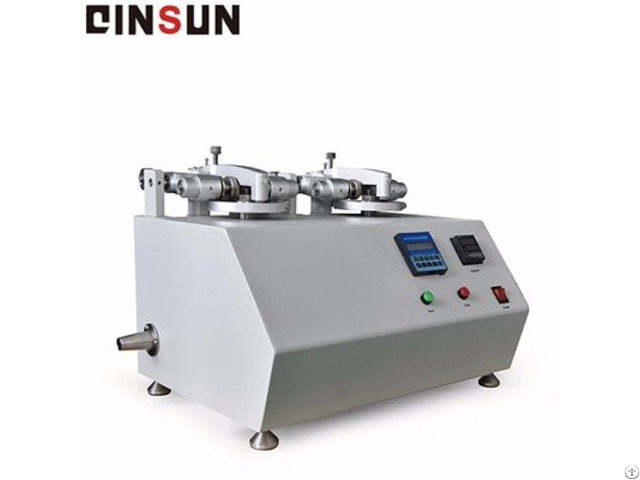

Precision Double Head Rotary Abrasion Tester With Platform - China

Dual Head Rotary Abrasion Tester is a durableprecisionbuilt instruments designed to perform accelerated wear tests on a variety of specimens.

ThisAbrasion Test is suitable for a wide range of samples including solid materials, painted surfaces, lacquered surfaces, electro-plated surfaces, plastic-coated materials, textiles, metals, leather.

Taber abrasion tester is used to assess the wear resistance, such as measuring its quality loss, loss of thickness and light transmittance.

Make the test piece by the standard cutter.

Used the prescribed grinding wheel with a certain weight to wear.

Remove the specimen after the specified rotation number, observe the weight difference before and after the test.

Application

Mainly used for the wear tests of suitcases, carpets, cardboard, clothing, glass, plastic coating, tiles, metal coating, paint, varnish, decorative flakes, high pressure sheet, plastic, textiles, flexible floor mats, traffic paint, anodized, electronic components, decorative panels, wax, labels, leather, dental materials, automotive interior ornaments, resins, furniture and so on.

Standards

1 - DIN 53754 Testing of plastics; determination of abrasion, abrasive disk method 2 - DIN 53109 Testing of paper and board; determination of abrasion by the abrasion wheel method

3 - DIN 52347 Testing of glass and plastics; abrasion test; method using abrasion wheels and measurement of scattered light

4 - TAPPI T476 Abrasion loss of paper and paperboard (Taber-type method)

5 - ASTM D1044 Standard Test Method for Resistance of Transparent Plastics to Surface Abrasion

6 - ASTM D3884 Standard guide for abrasion resistance of textile fabrics (Rotary platform, double-head method)

7 - ISO-5470 Rubber- or plastics-coated fabrics - Determination of abrasion resistance Technical Parameters

Items Parameters Rotation speed 30-75r/min adjustable(digital display) Diameter of sample surface 100mm Diameter of test platform 113mm Set range of cylinder number 1-999999 Pressure of empty arm 250g Weights(according to customers) 250g, 500g, 750g, 1000g Pressure range of double wheels 125g, 250g, 500g, 750g, 1000g, 1250g, et al.

Height of vacuum arm Adjustable Power 220V, 50Hz Dimension 220mm×380mm×300mm Weight 20kg
