Protective Clothing Fabrics Anti Heat Performance Test Machine - China

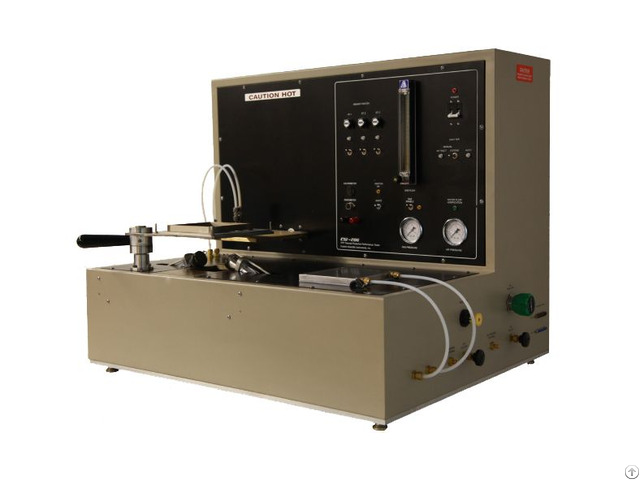

The Protective Clothing Fabrics Anti-heat Performance Test machine is suitable for determining the protection provided by materials under heat exposure when welding or with other related procedures.

A steel cylinder in a steel cone and in an oven is heated to a temperature of 600°C.

After the heating the steel cone is put onto a mechanism which is on top of the calorimeter and the specimen.

When triggering the magnetic switch the steel cylinder vertically falls onto the specimen.

The calorimeter measures the starting temperature, the maximum temperature and the maximum difference.

Before and after the test the calorimeter is adjusted to 20°C by a cooling and heating unit.

The software manages the controlling, calculations and evaluation of the standard.

Technical Parameters

Items Parameters

Sample geometry Textiles

Test standards ISO DIS 9150

Sensory function Temperature (calorimeter)

Power 230 VAC / 150 VA Dimension 600 x 300 x 300 mm (W x D x H)

Weight 20kg
