Qinsun Scrub Abrasion And Washability Tester - China

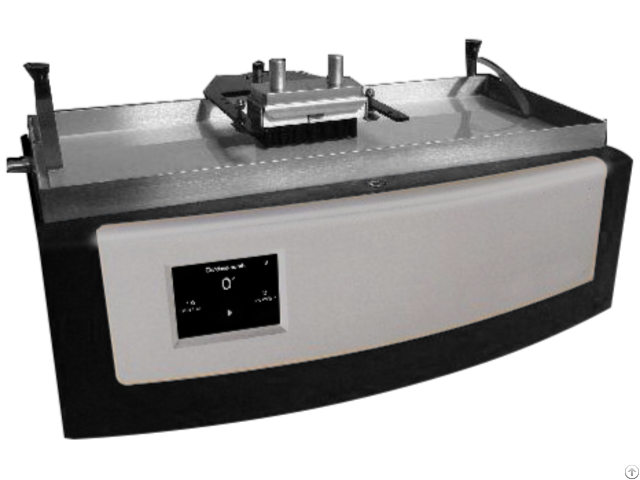

The Scrub Abrasion and Washability Tester is used to test the resistance of paint, varnish or coatings to scratching, wearing, and color loss due to wet or dry abrasion, by simulating everyday wear from cleaning actions or general use.

Standard：

ASTM D1792;ASTM D2198;ASTM D2486;ASTM 3206;ASTM D3207;ASTM D3450;ASTM D4213;ASTM D4488;ASTM D4828;ISO11998;DIN 53778;DIN 13300; Canadian Government Regulation 26-GP-3a; Pennsylvania Federal Code W-4; US Federal Code P-C-431a; P-D-220A, etc.

Instrument features:

1 - Using chain drive mechanism to ensure long-term reliable operation, 2 - Make a uniform reciprocating linear motion by certain progress; with strong reproducibility;

3 - 7-inch touch screen display, easy to operate; compact design

The main parameters:

The number of reciprocating: up to 100, 000;

Scrub speed: 6 to 60 reciprocating / minute;

Scrub test arm can be placed up to 3 brushes or cushion base, improve test efficiency;

Test arm maximum load 4kg (8.8lbs);

Power supply: AC220v 50Hz

The stroke length is 28cm

Company Contact:

• Posted By: Qinsun Instruments (Shanghai) Co., Ltd.

• Phone: +862164200566

• Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

  We have our own textile testing lab.

  Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

  We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

  We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

  For the laboratory requirements, we also bring forth the new practical test instruments.

  Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
