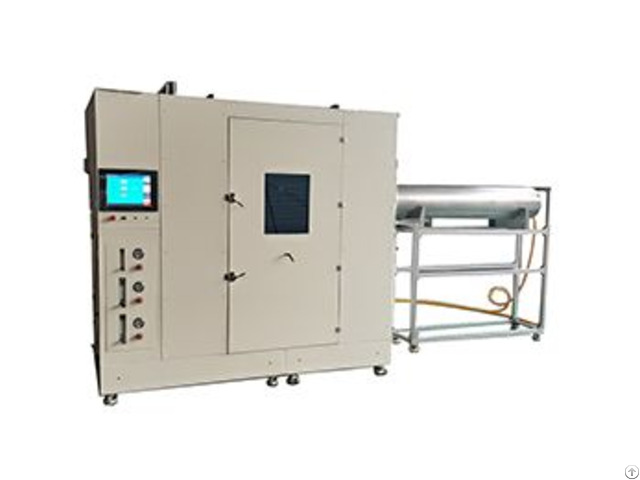

Rain Spray Test Chamber - China
price: 20000.00 Dollar US$
This chamber is used to test the moisture permeability of specimen during rain.
The testing conditions of this chamber are similar to the actual conditions outside.
Model: HD-LY310J;
Internal volume: 1000 L;
Internal dimensions (D*W*H): 1000*1000*1000 mm;
Standard: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6
Intensity of falling drops (rain): from 1 to 15 mm/min;
Accuracy of falling drops (rain): ± 0.5 mm/min;
Swing pipe water flow (per nozzle): 0.07 ± 0.5% L/min; IPX1 / 2 test
The number of droppers in the container: Not less than 2500;
Dripper diameter: 0.4 mm;
Dripper length: 15mm;
Diameter of the falling drops hole: 0.4 mm; IPX3 / 4 test
Sprinkler tube radius: 800mm;
Pipe swing speed: 10 ~ 60 ° / s;
Distance between nozzles in the pipe: 50mm;
Diameter of nozzles in the pipe: 0.4 mm;
Swing pipe pressure sensor: 0 ~ 1.6 bar; IPX5 / 6 test
IPX5 spray nozzle: Ф 6.3 mm;
IPX6 spray nozzle: Ф 12.5 mm, nozzle Threaded, easy to change.
IPX5 spray volume: 12.5±0.625 L/min;
IPX6 spray volume: 100±5 L/min;
Spray distance: 2.5 meter (from spray nozzle to the center of turning table);
Water pressure: According to technical requirement;
Temperature range: Room temperature;
Nozzle diameter: 0.3~0.4 mm;
Spray volume: 2 L/min.
;
Nozzle pressure: 60~100 kPa’
Rotating speed of rotating table: 1～10r/min, adjustable;
Diameter of rotating table: Φ350 mm; Control system: Touch screen, programmable controller;
Power supply: AC 220V±10%, 50±0.5Hz;
Company Contact:
- Posted By: Hyde Science and Technology Limited
- Phone: +86-29-89182431
- Address: Road Tangyan, Xi'an , Shaanxi , China
- Email:
- Website: http://www.globalhaide.com/
Published date: April 26, 2021
- Business Description: Hyde Science and Technology Limited, established in 2010,is engaged in studying and developing the climate testing techniques, manufacturing environmental testing equipment, researching and developing management software.
