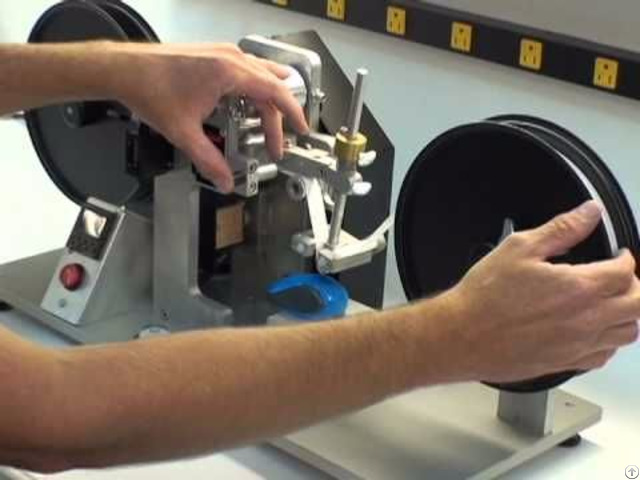

Rca Tape Scroll Abrasion Wear Tester - China

Typically used on painted or plated organic finishes, foil, and inked key pad lettering.

This tester is widely used as a standard for many silicone key pad and membrane switch manufacturers.

This abrader is used as a standard to the auto, appliance, cell phone, plastics, and coating industries.

It uses an inexpensive roll of throw away abrasion paper.

All build-up error is eliminated and consistent readings are easily obtained.

The tape abrasion test machine having a number of times to reach the stop function and having breaks down function, which can reduce product testing abrasion tests error, better test for a customer to save paper.

The RCA Abrasion Wear Tester is used to test surfaces for resistance to abrasion and wear.

Instructions:

1, scroll uncoated paper or tape friction with the sample oil after the determination of the effect of the wear certain number of revolutions

2, for the softer material load of 55g or 175g mitigate

3, with a magnifying glass to view

4, the counter: Digital counter (Led display, 0-9999 can set the number of revolutions) Technical Parameters:

1, the test load (g): 55g g175g 275g

2, test speed: 16 R / MIN

3, machine size: 530 * 490 * 410 (mm)

4, Machine Weight: 59kg

5, power supply: 1Φ, 220V, 5A or designated Product Configuration:

A set of tools, a magnifying glass.

;

Test load: 55g, 175g, one each;

A flat retainer;

3 O-ring.

Lap tape
