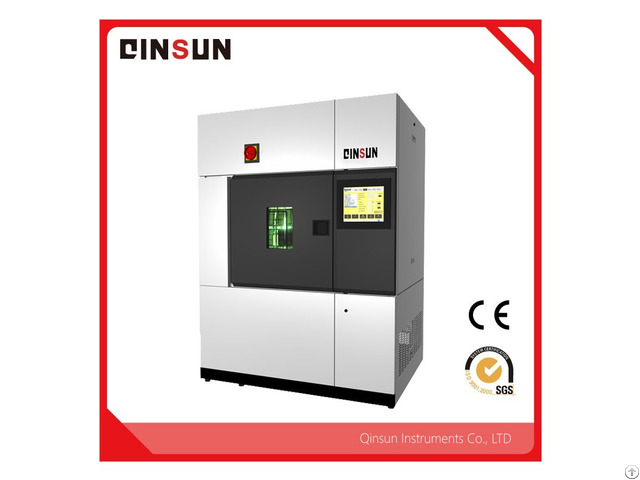

Reliable Quality Xenon Arc Aging Test Chamber - China

Xenon Arc Aging Test Chamber is to test the product undergone illumination/ rain/ condensation/ temperature/ humidity/ wind and any other climatic changes.

This aging tester mainly for the test of non-ferrous/ organic/ rubber/ plastic and building materials.

Xenon lamp aging chamber simulated under different environmental conditions, the material is exposed to changes in sunlight produced for product development and quality control to provide the appropriate environment for simulation and acceleration test.

It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.

Reliable quality Xenon Arc Aging Test Chamber From qinsun-lab is a photoaging tester for large-capacity textile testing.

With additional sample light frame, temperature sensor and easy to aging filter.

220 can test 38 samples at the same time, with 150S + double capacity.

Large-capacity test box combined with the efficient use of hydropower to make it the most economical air-cooled tester.

Standards:

AATCC 16-2004, AATCC TM169, ISO 105-B04, M & S C9, M & S C9A, GB / T 8427 - product details:

1, light source: 2200W air-cooled xenon lamp

2, exposure test area: 2310cm2

3, color touch screen control and display test parameters

4, radiation control: 300-400 nm automatic control

5, directly set and control the black mark temperature

6, directly set and control the cabinet temperature

7, directly set and control the relative humidity

8, display test diagnostic information

9, can store up to 10 user predefined tests

10, multi-language user interface

11, easy to aging filter system in line with ISO 105-B02 and AATCC TM16 standards

12, sample rack XENOSENSIV? For measuring and controlling the level of radiation (in W / m?) And black standard temperature

13, optional temperature control: box temperature (up to 65 ℃) or box temperature black mark temperature dual control (up to 100 ℃)

14, the fan control black mark temperature and the difference between the box temperature

15, integrated 60-liter water tank for humidity control and sample spray (auto fill)

16, can be loaded with 19 sample rack test up to 38 standard textile samples (13.5cm 4.5cm)

17, pre-defined criteria: ISO 105 B02 and AATCC TM16-2004 (option 3)

18, to the total exposure, light time or running time to end the test

19, UV protection test box window

20, advanced automatic start function

21, built-in memory chip to store data

22, through the RS 232 interface or memory card to transfer storage data

23, Ethernet interface to connect the internal computer network, and XenoTouch Add-ons1, 2, 3 use (remote control, e-mail service, online monitoring)
