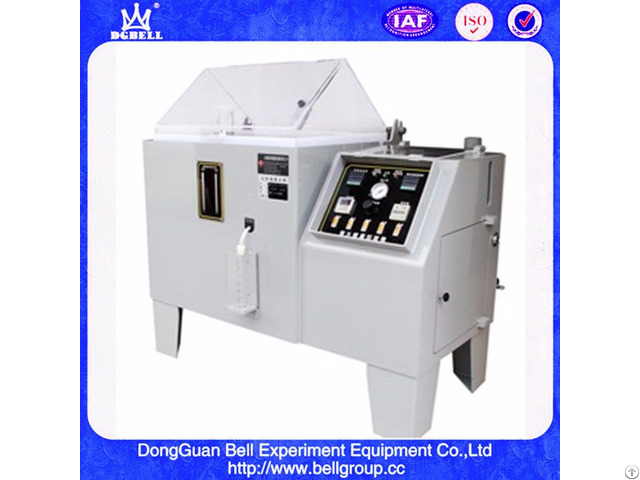

Salt Spray Test Chamber - China

This equipment mainly used for simulating salt fog corrosion, testing the corrosion resistance test of products.

After anti-corrosion treatment on the various materials surface, including coating, electroplating, inorganic and organic film, anode processing, anti-rust oil, test performance in anticorrosion.

Technical Parameters

Test machine Temperature Scope

RT(Room Temperature)~55℃

Pressure Tank Temperature Scope

RT (Room Temperature) ~70℃

Brine temperature

35℃±1℃

Temperature Fluctuation

≤±0.5℃

Temperature Uniformity

≤±2℃

Temperature Deviation

≤±1℃

Spray Flow

1 ~ 2ML/80cm2 1hr (Based on mean value by 16

hour’s Gathering)

Relative Humidity

≥85% HR

Spray Pressure

1.00±0.01 kgf/cm2

PH

Neutral 6.5~7.2 /Acid 3.0~3.3

Specifications

Model No.

Internal Dimension (mm)

External Dimension (mm)

BE-CS-60

W600*H400*D450

W1070*H1180*D600

BE-CS-90

W900*H500*D600

W1310*H1280*D880

BE-CS-120

W1200*H500*D1000

W1900*H1300*D1400

BE-CS-160

W1600*H500*D1000

W2300*H1400*D1300

BE-CS-200

W2000*H500*D1200

W2700*H1500*D1500

Standard Complance

1 - ASTM B117 Salt Spray (Fog) Test

1 - ASTN D1654 Standard Test Method For Evaluation of Painted or Coated Specimens Subjected to Corrosive

2 - Environments

3 - ASTM D3359 Standard Test Methods for Measuring Adhesion By Tape Test

4 - JIS H8502 Methods of Corrosion Resistance Test For Metallic Coatings

5 - IEC 60068-2-11-1981 Basic Environmental Testing Procedures Part 2: Tests, Test Ka: Salt Mist

6 - IEC6802-52 1996 Environmental Testing-Part 2: Tests-Test Kb: Salt mist, cyclic (Sodium Chloride Solution)

7 - GJB 150.11A-2009 Laboratory Environmental Test Methods For Military Material- Part 11: Salt Fog Test

8 - CNS 4159 CASS Test-Copper Accelerated Acetic Acetic Acid Salt Spray (Fog) Test

9 - CNS 4158 Method of Salt Spray Fog Test for Surface Finishing

10 - MIL-STD810F Environmental Engineering Considerations and Laboratory Tests

11 - MIL-STD 202 Test Method Standard: Electronic and Electrical Component Parts

12 - MIL-STD 883 Test Method Standard: Microcircuits

13 - MIL-STD 1344 Test Methods For Electrical Connectors

14 - RTCA DO-160 Section 14 (Avionics) IEC 68 Part 2

15 - NEMA 250 Enclosures for Electrical Equipment

16 - SAE J2334 International Surface Vehicle Standard-Cosmetic Corrosion Lab Test

17 - SAE J 1211 Recommended Environmental Practices For Electronic Equipment Design

18 - GM 9540P General Motors Engineering Standards: Accelerated Corrosion Test

Features

With automatic / manual water supply system, can automatically add water when water shortage, do not interrupt test.

Temperature controller with digital display, PID control error ±0.1℃

Double overheating protection, water shortage warning

Adopting steam direct heating mode, heating speed and uniformity, reduce the standby time

With automatic/manual water system, water shortage will automatically added water, test don't interrupt., PID control error 0.1 ℃

Double over temperature protection, insufficient water level warning

Adopts steam heating mode directly, fast and uniform temperature rise, reduce the standby time
