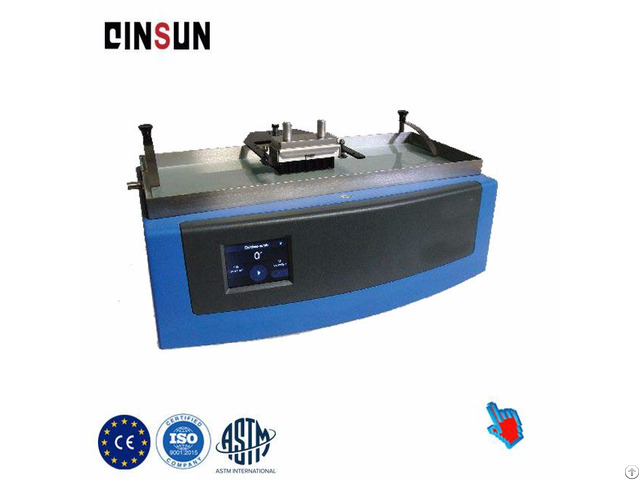

Scrub Wear Tester For Paint Uncoated Surface - China

Scrub wear Tester for paint uncoated surface is widely used for painted and coating .

The painted or uncoated surface need use a brush, sponge, scouring pad, sandpaper or other methods to test the resistance to scrub.

The friction test can be carried out by adding a friction agent or a cleaning agent in a wet scrubbing manner.

It is usually used in interior wall coatings, floor tiles, shower baths, and furniture.

Standards ASTM D1792;ASTM D2198;ASTM D2486;ASTM 3206;ASTM D3207;

ASTM D3450;ASTM D4213;ASTM D4488;ASTM D4828;ISO11998;DIN 53778;DIN 13300;Canadian Government Regulation 26-GP-3a; Pennsylvania Federal Code W-4; Federal Code P-C-431a;P-D-220A;P-R-201 b;P-W-155;T-1279D;TT-P-18 ;TT-P-22, TT-P-23a;TT-P-26a;TT-P-29 B;TT-P-30;TT-P-47a;TT-P-5 1d;TT-P-88a;TT-P-508; FTMS 141A; FTMS 6141, ;FTMS 6142; US Military Code MIL-C-3004, MIL-C-46057, MIL-E-11237MIL-P-13340A, MIL-P-15422B; US Navy Code 512C20C; Rock Island Arsenal Code RIX-268 Features

◆ Make a uniform reciprocating linear motion by certain progress; with strong reproducibility

◆ 7-inch touch screen display, easy to operate; compact design

◆ Using chain drive mechanism to ensure long-term reliable operation Accessories

Host

Sample plate

power supply

Operation Manual

Scrub the test plate (please refer to the standard and the actual needs of the purchase.

) Technical Parameters

Items Parameters

Scrub speed 6 to 60 Reciprocating / minute

The number of reciprocating Up to 100, 000

Scrub test arm can be placed up to 3 brushes or cushion bases, improves test efficiency

Test arm maximum load 4kg(8.8lbs)

The stroke length 28cm

Power supply AC220v 50Hz
