Shot Bag Impactor For Safety Glazing Materials Testing Machine - China
price: 1575.00 Dollar US$
Impactor of Impact Test for Safety Glazing Materials Used in Buildings
Shot Bag of Test device for the impact performance for Safety glazing materials in building
Impacting Shot Bag of Impact Test for Safety glazing materials in buildings Related Standards:
1) AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test
2) GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag
3) ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test
4) ASTM : E2353 Standard Test Methods for Performance of Glazing in Permanent Railing Systems, Guards, and Balustrades – Clause 7.3 Shot Bag, Traction and Release System 5) Application:
6) Determining the resistance of glazing materials to impact by the penetration method
Structure:

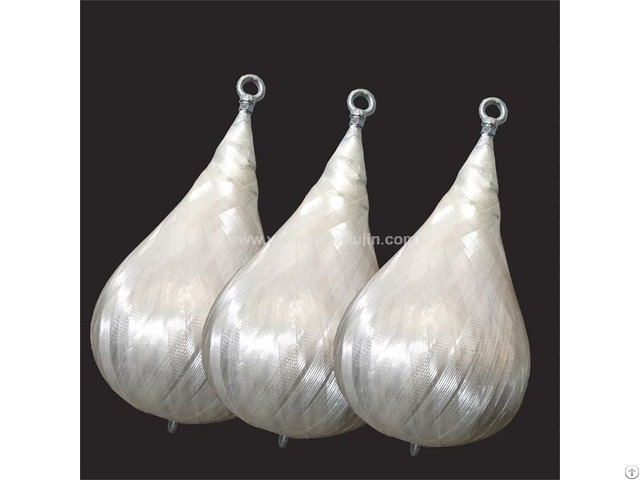

7) Reinforced leather bag filled with chiller lead shot
Technical Data:
8) Weight: 45kg ± 0.1kg 46kg ± 0.1kg
9) Height: 330mm ± 13mm
10) Max diameter: 250mm
11) Lead sand size: 2.5mm
Customized 25kg 48kg
Company Contact:
- Posted By: Qinhuangdao Yuanchen Hardware Co.,Ltd
- Phone: 863353899615
- Address: Northern Industrial Zone, Haigang District,, Qinhuangdao , Hebei , China
- Email:
- Website: https://www.yuanchenwujin.com
Published date: April 24, 2020
- Business Description: Yuanchen supply nonstandard metal stamping, sheet metal working, sheet metal fabrication, laser cutting service, safety glass testing equipment, metal bracket, sheet metal bending, sheet metal forming etc.
Customized OEM service and Free Sample Confirmed.
Qinhuangdao Yuanchen Hardware Co., Ltd. is special in metal processing and nonstandard metal parts.
Products are widely used in:
Auto Parts
Indurtry Parts
Electronic parts
Machinery Parts
Cosplay metal parts
Construction Fittings
Photovoltaic hardware
Sports equipment parts
Medical device metal parts
Cosplay metal parts
Glass inspection equipment
OEM/ODM
Sheet metal fabrication/Nonstandard parts
Metal laser cutting/Stamping/Bending/ Welding/Punching/Blanking /Forming
Various of safety glass impact test equipment and parts
Brackets/Gasket/Cab le hanger/Connector/Clip/Cla mp/Iron fittings/Hinge
