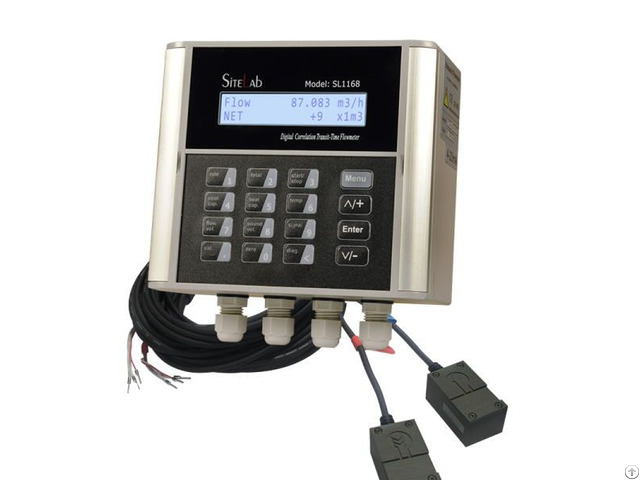

Sitelab Sl1168 Ultrasonic Flowmeter - China

Overview: Ultrasonic flowmeter SL1168 liquid flow meter is optimized for customers still looking for high performance, but needing a lower-cost, less feature-rich option for dedicated clamp-on ultrasonic metering.

Ultrasonic flowmeter SL1168 digital liquid flow meter optimizes the measurement of water as it flows in irrigation, supply system and other liquid applications.

Common applications include: Water and wastewater measurements Leak detection in piping systems Contactless product recognition Interface detection Automated process control Specifications: Accuracy: +/-1.0% of reading from 0.03 to 16fts (0.01 to 5m/s) Repeatability: +/-0.3% of reading Wide turndown ratio Bi-directional flow range of 0.03 to 16 ft/s (0.01 to 5m/s) Pipe sizes from 1 to 48 inches (25 to 1200mm) Process pipe-wall temperature: 32 to140F (0 to 60C) Power supply: 10 to 24 V AC or 10 to 36 V DC at 1A Output signals: 4-20mA Pulse (configurable) Relay (configurable) Digital communications: RS-232, RS-485, Modbus RTU Materials: Enclosure NEMA 4X (IP65), die-cast aluminum Transducers IP68 (encapsulated) Standard cable length: 30ft (9m) Maximum cable length: 100ft (30m)

Company Contact:

• Posted By: Gentos Measurement & Control Co., Ltd.

• Phone: (0086) 755-2674 5561

• Address: 12/F,Block A5.Nanshan lpark,No.1001 College Rd.Nanshan District.Shenzhen CHINA, shenzhen , Guangdong , China

• Email:

• Website: http://www.pflow.com.cn/

• Business Description: ultrasonic flowmeter supplier

  As we got information on the website, here would like to share some information to you:

  1 - Maybe you're purchasing flowmeter from China and you're always working with the supplier who is able to provide good quality products.

  2 - As a ultrasonic flowmeter manufacturer, We Gentos has already worked in flowmeters for 25 years in Shenzhen, China.

  We have our own technical team, production team, and sales department.

  That means we can give our customers one-stop service, like on-time technical supports, sales support.

  3 - Besides, we are able to provide customerized functions according to your requirements both on the software and hardware.
