Specialize In Uv Lamp Testing Chamber For Aging Test Supplier - China

Product Application

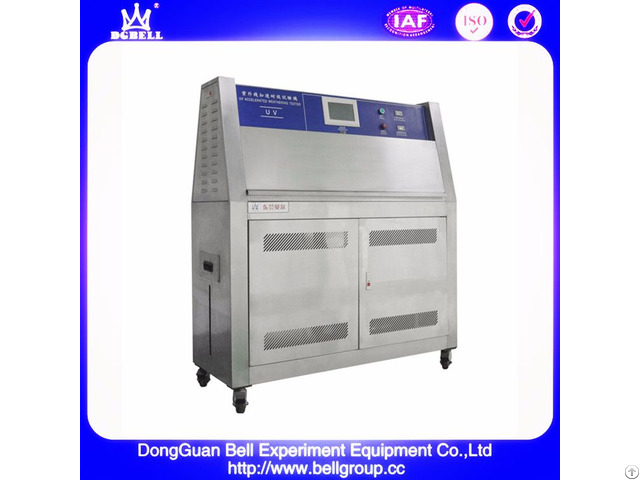

This equipment is designed and manufactured for simulate heat and ultraviolet radiation of the sun, rain and dew, to inspect and predict the aging resistance of the product according to the testing result, and is helpful to optimize the products.

the testing type damage include: bleaching, discoloration, gloss loss, powder, crack, turbidity, bubble-based, strength decline and oxidation.

It's widely used in the industry, such as coating, printing ink, paint, resin, plastics, print, packing, motor van, cosmetic, metal, electron, galvanization, medical, and so on.

Technical Specification

Model

BE-UV-8

Control system

Color LCD touch screen

Temperature range

RT+10 °C~70°C

Temperature fluctuation

±3°C

Humidity range

45%~90%R.

H

Distance between sample and lamp

55 mm

UV Wave length

UV-B Wave (280~315nm) or UV-A Wave (320~400nm)

Specimen size and quantity

75x150 mm, 48 pcs

Water and consumption

Distilled water, 8 liters / day

Internal dimension

W1170xD450xH500mm

External dimension

W1330xD550xH1480mm

Tube quantity

8 lamps, imported from America

Lamp Service Life

1600 hours

Weight

100KG

Main Features

(1) Condensation device simulates the humidity of outdoor.

(2) Electronic-eye irradiance control system

(3)with high precise temperature sensor

(4) simulate humidifying, condensation and water spraying circulating test.

Standard Compliance

(1)ISO 48-3-2006, Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps;

(2)ASTM D4329-2005, Standard Practice for Fluorescent UV Exposure of Plastics;

(3)ASTM D4587-2005, Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings;

(4)ASTM D5208-2001, Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics, etc.

(5)GB/T14552-2008, GB/T16422.3-1997, GB/T16585-1996, ASTM D4329, ISO 4892-3, ISO 11507, SAE J2020

Safety Notice

1 Exposure under UV light for long time will hurt eyes and skins, also UV light on it will generate ozone, high concentration ozone will make people uncomfortable like headaches, chest stuffiness etc.

To avoid such danger, it is necessary to keep ventilation on site and wear protective equipment.

2 To ensure machine safety, need to install external protection devices and connect with right power source.

3 Prevent for test of easy-firing, easy explosive, poisonous, corrosive materials.

4 Non-professional personal can not disassemble and maintenance the machine .

5 The machine should be well grounded.

If there is troubles of the machine and need to change the spare parts, please replace with the same model ones.

6 Can not open the testing door during test.
