Support For Head Form Test - China
price: 595.00 Dollar US$
eference standard: ISO 3537 ROAD VEHICLES – SAFETY GLAZING MATERIALS —MECHANICAL TESTS Test purpose: Assessment of the minimum strength and cohesion of the safety glazing material under impact from a blunt, bulky object.

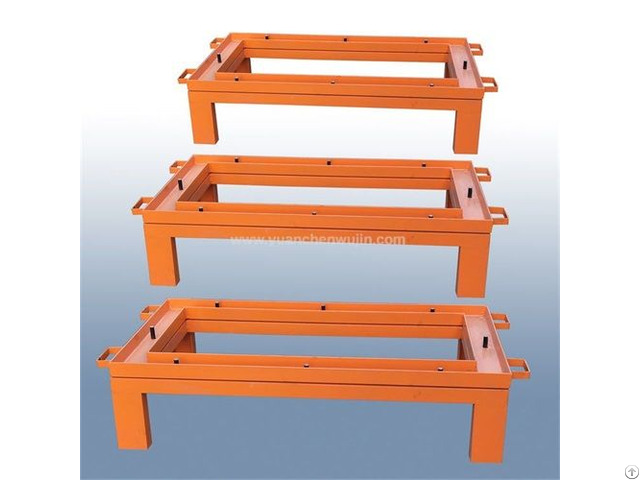

Supporting fixturez: composed of two steel frames, with machined edges, 50mm wide, fitting one over the other and faced with rubber gaskets, the upper frame is pressed against the lower frame by at least eight bolts.
Technical Data: Size: 1400mm*666mm*320mm Sample: 1100mm * 500mm Test height: less than or equal to 1.5 m Rubber pad: 15mm wide, 3mm thick, of hardness 70 Shore A
Company Contact:
- Posted By: Qinhuangdao Yuanchen Hardware Co.,Ltd
- Phone: 863353899615
- Address: Northern Industrial Zone, Haigang District,, Qinhuangdao , Hebei , China
- Email:
- Website: https://www.yuanchenwujin.com
Published date: June 15, 2020
- Business Description: Yuanchen supply nonstandard metal stamping, sheet metal working, sheet metal fabrication, laser cutting service, safety glass testing equipment, metal bracket, sheet metal bending, sheet metal forming etc.
Customized OEM service and Free Sample Confirmed.
Qinhuangdao Yuanchen Hardware Co., Ltd. is special in metal processing and nonstandard metal parts.
Products are widely used in:
Auto Parts
Indurtry Parts
Electronic parts
Machinery Parts
Cosplay metal parts
Construction Fittings
Photovoltaic hardware
Sports equipment parts
Medical device metal parts
Cosplay metal parts
Glass inspection equipment
OEM/ODM
Sheet metal fabrication/Nonstandard parts
Metal laser cutting/Stamping/Bending/ Welding/Punching/Blanking /Forming
Various of safety glass impact test equipment and parts
Brackets/Gasket/Cab le hanger/Connector/Clip/Cla mp/Iron fittings/Hinge
