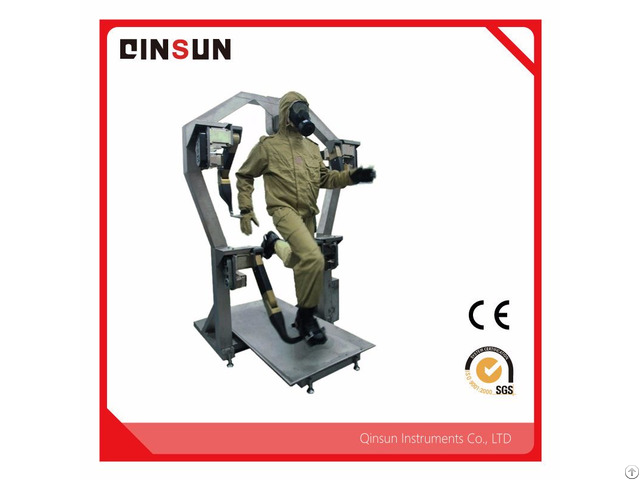

Sweating Thermal Manikin - China

price: 1.00 Dollar US$

Introduction The sweating thermal manikin test system simulates the physical mechanism and heat exchange from the outside world.

Obtain the thermal resistance, wet resistance and clo value of the material by the manikin monitoring results, and the influence of different clothing on the thermal comfort manikin is obtained by analyzing the software data.

Thermal manikin test system can characterize the impact of different clothing on human comfort performance by measuring the heat balance and the results of human comfort between heat generation of dressed manikin and the external environment.

Then, guide the fabric and clothing development for the special using conditions of the comfort.

Thermal manikin test system with data analysis software present human sensory conclusions through the data.

It avoids the real human test to achieve the uniform data results.

Reduce the difference in results caused by differences in personal perception.

It is applicable to thermal insulation properties test of functional fabrics, clothing R & D and production, sleeping bags and other materials, It also can be used to analyze the environmental impact on human comfort and the environmental conditions that meet the comfort of the human body.

The United States, Canada, the United Kingdom, France, Germany, Russia, Switzerland, Sweden, Denmark, Finland, Norway, Hungary, Poland, Portugal, Japan, South Korea, Singapore and other countries have make this advanced technology apply to clothing, aerospace, fire, traffic safety and other fields.

Especially in the hot and humid comfort evaluation and the development of occupational protective clothing.

Thermal manikin can simulate the heat exchange process between human body, clothing and environment in the setting environment, scientifically evaluate the thermal performance of the whole clothing, avoid the influence of individual differences in human experiment with high experimental precision and good reproducibility.

It has recognized as an indispensable means for the study of garment ergonomics.

Human body dissipates heat to the surrounding environment not only by the conduction, convection, radiation, but also by the body's skin sweat evaporation.

If the water vapor can spread through the clothing system in time to the surrounding environment, we will feel comfortable.

If the clothing hinders the passage of water vapor, increasing micro-climate humidity between the human skin and clothing, water vapor will accumulate to a certain extent and condensate into the water to make people feel uncomfortable.

When the human body carry out intense activities or in a hot environment, the sweat evaporation is an important way to lose calories.

Therefore, the clothes are asked to have high water vapor transmission capacity.

Thus, it is necessary to accurately test the evaporation resistance of clothing in order to make a comprehensive evaluation of the heat and moisture transfer performance.

People have developed the sweating thermal manikin due to the dry thermal manikin only in the non-evaporative cooling range to simulate the physiological response of the human body.

Early sweating thermal manikin simulate the human skin by covering its surface with a layer of cotton fabric or other moisture permeability underwear.

Firstly, spray water to the simulated skin, then put on clothes to rise the temperature to a certain level.

Every 5 minutes, the control system record the surface temperature, environmental parameters and heating power, and calculate the evaporation resistance of clothing.

Finish this test before the simulation skin starting to dry.

Since this process is a quasi-steady-state process, usually in a very short time, mainly by the operators’ subjective judgment the relatively stable evaporation resistance value as a test result, so can not use this method to accurately and repeatedly measure the evaporation of clothing resistance.


Company Contact:


  • Phone: +862164200566

  • Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

  • Email: Email


Published date: January 30, 2018

  • Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

    Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

    Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

    We have our own textile testing lab.

    Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

    We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

    We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

    For the laboratory requirements, we also bring forth the new practical test instruments.

    Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
