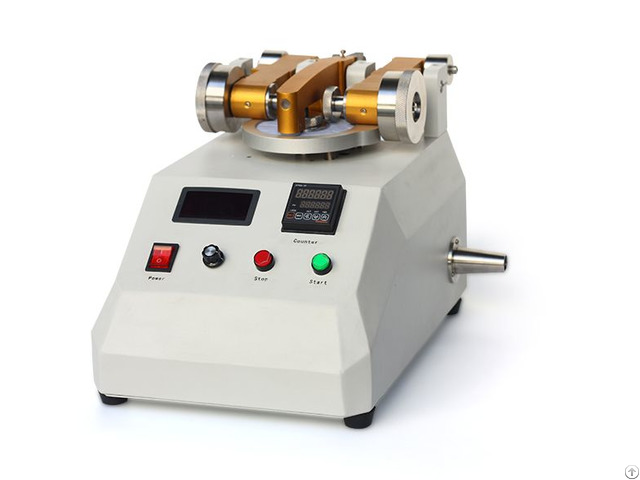

Taber Abrasion Resistance Test Machine From Qinsunlab - China

price: 1.00 Dollar US$

TABER abrasion resistance tester and wear resistance tester apply to the abrasion resistance performance test on fabric, cardboard, paint, leather, tile, glass and natural rubber, method is simple and easy to operate, which has been widely used in various industry's testing laboratory.

Abrasion tests, the material is standard wheel friction after a certain number of turns, evaluate its abrasion resistance material weightlessness rate by calculation.

Abrasion wheel after pre grinding standard method, test results can reach very high consistency.

Core advantages Simple operation, display real-time speed, the speed control can be achieved 30-75rpm adjustment, wearing can be preset number of turns.

Arm can match with balance weights, accurate weight balance abrasion arm, to realize the ASTM standard which requires 125 g pressure requirements Vacuuming mouth height is adjustable, and adapt to different thickness materials, efficient removal of debris, improve test accuracy Brand motor, mute, low noise, smooth operation Applicable Standards ISO 9352, ISO 5470, ISO 7784, ASTM D1044, ASTM D3884, ASTM D4060, GB/T 5137.1, QB/T 2726, DIN 53109 Features: Operation panel with LCDscreen, display real-time speed with speed button, 30-75rpm speed adjustable.

The number of wear cycles can be preset, setting range 1-999999 times.

The rear arm can precisely balance the weight of the worn arm with balance weights to meet the 125 g pressure according to the ASTM standard, as well as other standards and special pressure requirements.

Vacuum pump suction height is adjustable to meet material testing in different thickness.

Besides, it can be efficiently eliminate debris to improve test accuracy.

Specifications spinning speed adjustable within the range of 30-75r/min (digital) The sample surface diameter 100mm Sample table diameter 113mm setting range of Number of turns 1-999999 Air pressure 250g Weight (based on purchase) Counterweight, 250g, 500g, 750g, 1000g Wheel pressure range 125g, 250g, 500g, 750g, 1000g, 1250g Vacuum arm height Adjustable power 220V, 50Hz Size 220mm×380mm×300mm weight 20kg


Company Contact:


  • Phone: +862164200566

  • Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

  • Email: Email


Published date: September 6, 2019

  • Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

    Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

    Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

    We have our own textile testing lab.

    Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

    We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

    We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

    For the laboratory requirements, we also bring forth the new practical test instruments.

    Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
