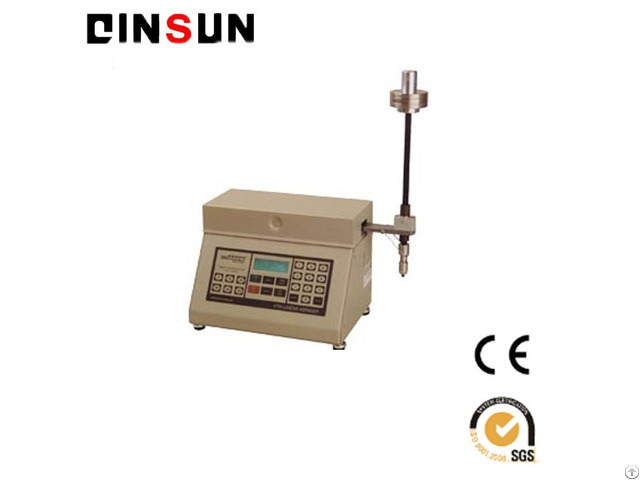

Taber Linear Abrasion Tester For Rub - China

The Linear Abraser uses a free-floating head to follow the contours of every sample, permitting testing of finished products.

With virtually no limit on sample size or shape, the Linear Abraser is ideal for testing consumer products, automotive components, painted parts, printed graphics, optical products, rubber, leather, textiles and for use in testing laboratories.

The instrument can test specimens with different sizes and shapes, especially ideal for the abrasion test of specimens with contoured or polished surfaces (e.g. abrasion test for plastic paint on computer mouse and other computer or IT products), such as general plastics, automotive components, paint products, printing pattern, etc.

Technical Parameters

1) 11 stroke lengths Standard stoke length: 0.2", 0.5", 0.61", 0.75", 1.0", 1.5", 2.0", 2.5", 3.0", 3.5" and 4.0" Special stroke length can be customized.

2) Variable stroke speed from 275 cycles per minute Six preset stroke speed buttons for 2, 15, 25, 30, 40 and 60 cycles per minute.

3) Settable number of rotation cycles Maximum 999, 999 cycles (Note: During this cyclic rotation, the abrasion head may need to be replaced.

)

4) Optional load Variable load from 350g -2100g with optional weight discs (generally configure 3 weight discs of 250g load along with the instrument.

) Various weight discs optional

Company Contact:

• Posted By: Qinsun Instruments (Shanghai) Co., Ltd.

• Phone: +862164200566

• Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

  We have our own textile testing lab.

  Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

  We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

  We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

  For the laboratory requirements, we also bring forth the new practical test instruments.

  Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
