Temperature Humidity Vibration Test Chamber - China

price: 30000.00 Dollar US$

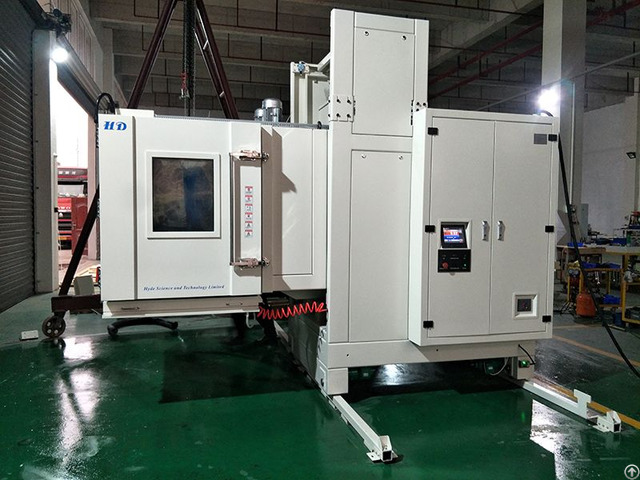

Temperature Humidity Vibration Test Chamber

Products Photos Catalog Temperature Humidity Photos Catalog

This chamber is designed to do stress test on the testing product as a whole by means of forced mechanical loads, as well as to test samples for the effects of changes in temperature and humidity.

Model：HD-PCT705;

Internal volume: 504 L;

Internal dimensions(D*W*H): 700*800*900 mm;

External dimensions (D*W*H): 2500*1000*2150 mm;

Table dimensions of vibrating table: Table ≤400*400 (Ф400); Temperature range: -70…+150℃；

Temperature fluctuation：≤1℃；

Temperature uniformity：≤2℃；

Temperature deviation： ±2℃；

Humidity range：20%.

98%RH；


Humidity deviation： +2%-3%RH (humidity>75%RH), ±5.0%RH (humidity ≤75%RH)；

Heating and cooling time：

Heating: 3℃/min.

;

cooling: 0.7--1.5℃/min； Refrigeration mode：Mechanical compression, two-stage refrigeration；

Compressor：Imported compressor；

Cooling mode：Air cooling；

Controller：Programma ble logic controller, touch screen；

Power：AC380V, 50Hz, Three-phase four-wire + earth wire；


Company Contact:


  • Phone: +86-29-89182431

  • Address: Road Tangyan, Xi'an , Shaanxi , China

  • Email: Email


Published date: April 26, 2021

  • Business Description: Hyde Science and Technology Limited, established in 2010,is engaged in studying and developing the climate testing techniques, manufacturing environmental testing equipment, researching and developing management software.
