Test Device For The Impact Performance Of Shot Bag - China

price: 1900.00 Dollar US$

Test Device For The Impact Performance Of Shot Bag

Products Photos Catalog Test Impact Photos Catalog

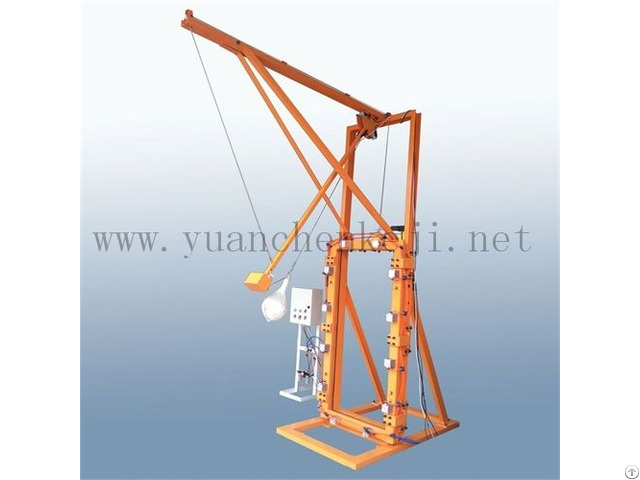

Test Device for The Impact Performance of Shot Bag

Function: Determining the resistance of glazing material to impact by the penetration method.

Principle: The specimen is supported vertically in a steel frame and an impact shot bag is released from a pre-determined height to strike the specimen at the centre.

The height is progressively increased until fracture occurs.

Related Standards:

AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test

GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag

ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test

Apparatus:

1) Impact testing frame: Frame Size: 1900mm*1500mm*3570mm Samples Size: 1930mm*864mm Lift: Electric Release: Auto Maximum impact height: 1200mm (customized) Rubber Pad Width: 15mm Rubber Pad Thickness: 3mm Rubber Pad Hardness: Shore A50

2) Impact shot bag: Weight: 45kg±0.1kg 46kg±0.1kg Height: 330mm ± 13mm Max diameter: 250mm Leather thickness: 1.5mm Lead sand size: 2.5mm Customized: 25kg /48kg


Company Contact:


  • Phone: 863353899615

  • Address: Northern Industrial Zone, Haigang District,, Qinhuangdao , Hebei , China

  • Email: Email


Published date: November 30, 2020

  • Business Description: Yuanchen supply nonstandard metal stamping, sheet metal working, sheet metal fabrication, laser cutting service, safety glass testing equipment, metal bracket, sheet metal bending, sheet metal forming etc.

    Customized OEM service and Free Sample Confirmed.

    Qinhuangdao Yuanchen Hardware Co., Ltd. is special in metal processing and nonstandard metal parts.
