Test Probe Pogo Pin SCPA020 for Integrated Circuit Inspection Semiconductor test probes are usually called double-ended pogo pins.

Common tip styles include B, J, J1, U, U1, etc.

All of the probes are extremely thin and miniature, however, the requirement for their test accuracy is very strict.

They are mainly applied to the fields of semiconductor tests and frequency tests of communication devices, for example, the frequency tests of mobile phones, walkie-talkies, computers, etc.

This product SCPA020 we will introduce is 0.2 mm in barrel diameter.

It can be applied to the tests of products which requires relatively high accuracy, for example frequency tests of semiconductor and communication devices.

Developed and manufactured on our own, this product takes the lead in the test industry.

Our complete production lines can also meet the needs for mass production.

The barrel of this double-ended pogo pin is made from phosphor bronze plated with gold or gold clad phosphor bronze.

The bottom plunger is made from SK4 plated with nickel and gold.

The same is with the top plunger.

The inner spring is made from SUS304 plated with gold and nickel.

This probe pin could withstand the current up to 1 Amp.

The typical maximal contact resistance is about 200 milliohms.

The plunger can be pressed at a distance of up to 1.1 mm.

But it is better to be pressed at a distance of 0.6 mm at most in working environments.

Otherwise, the spring will probably be damaged severely under constant pressure.

When the plunger is pressed at a distance of 0.6 mm, the loaded force is about 12 gf, which fluctuates to a tolerance.

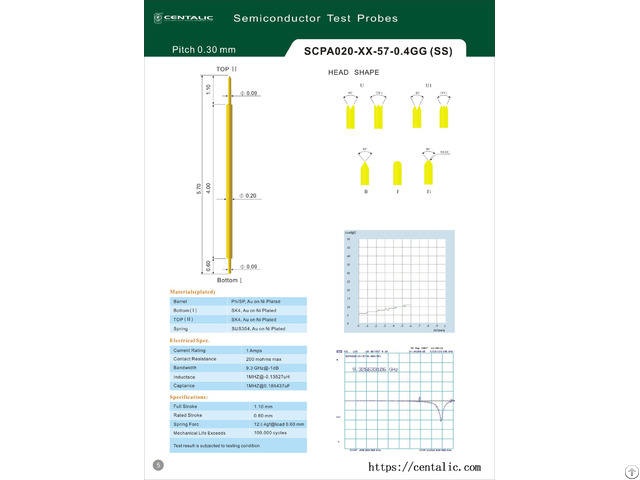

For details, please check parameters in below table.

Materials (plated)

Barrel: Ph/ SP, Au on Ni Plated

Bottom Plunger: SK4, Au on Ni Plated

Top Plunger: SK4, Au on Ni Plated

Spring: SWP, Au on Ni Plated Electronic Specification:

Current Rating: 1 amp

Contact Resistance: 200 milliohms max

Bandwidth: 9.3 GHz at -1dB

Inductive Reactance: 1MHZ at -0.13527uH

Capacitive Reactance: 1MHZ at 0.186437uF Specifications:

Full Stroke: 1.1 mm

Rated Stroke: 0.6 mm

Spring Force: 12±4 gf at load 0.6 mm, 21±5 gf at load 0.6 mm

Mechanical Life: about 100000 cycles For more information, please check below catalog.
