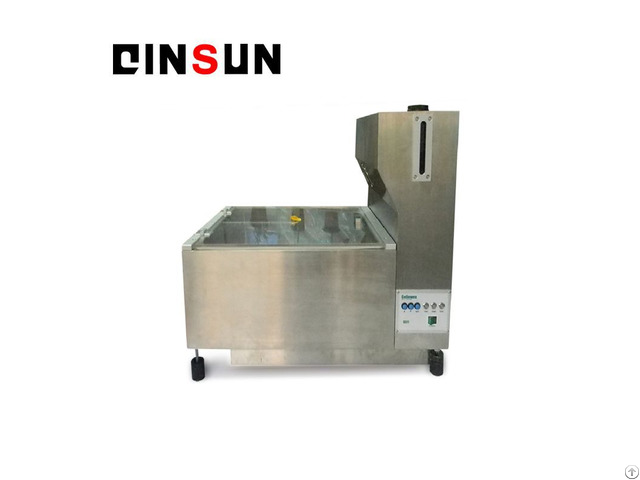

Thermal Water Vapor Resistance Tester - China

In the standard testing environment, heat the fixed aluminum or copper to a specified temperature and maintain the specified temperature, then measure the power used for heating.

Similarly, measure the power used for heating the copper or aluminum plate after placing the cloth specimen on it.

According to the power difference of two measurements and area size of the tested plate, the thermal resistance and water vapor resistance of test samples can be indicated.

Testing Standards: GB/T 11048, ISO 11092, ASTM F1868, ASTM D1518, JIS L1096​ Professional Technology

1 - The world's first unique design concept, integrated design of control systems and automatic water supply system, with the standard Climate Chamber optional.

2 - Automatic water supply, automatic drain system, efficient water charging system (In the evaporative resistance test mode, water uniformly wets test plate faster).

3 - High-precision automatic mobile system for the test platform, enter the thickness of the test sample, the test platform to move to the corresponding position.

4 - According to the thickness of the sample, the machine could automatically adjust the PID control parameters, then quickly reach to the required test conditions.

5 - The patented Air velocity parallel stabilization system, makes the Air velocity homogeneous and stable, more stable of the test results.

6 - Air velocity continuously adjustable from 0~2m/s to meet any Thermal and Evaporative resistance testing standards.

7 - Guard ring width of 127mm, to ensure that whole heat is just passed through the test sample than other way.

8 - LED soft lighting system.

9 - Standard USB communication, optional wireless wifi communication, to make more convenient connection.

10 - Machine stainless steel shell to ensure the life of the machine more than 20 years.

11 - Friendly and convenient testing software, test software to configure variety of test standard and user-friendly.

Company Contact:

• Posted By: Qinsun Instruments (Shanghai) Co., Ltd.

• Phone: +862164200566

• Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

  We have our own textile testing lab.

  Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

  We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

  We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

  For the laboratory requirements, we also bring forth the new practical test instruments.

  Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
